Item specifics
- Surface Processing Mode:
- Matte
- is_customized:
- Yes
- Model Number:
- GR047
- Use:
- cyclocross bicycles
- Weight:
- 1167g/+-40g (46cm)
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- BB:
- T47 thread
- Max Tire:
- 700C*47C
- Material:
- carbon fiber T1000
- Thru-axle Groupset::
- Di2 and Mechanical Compatible
- Cable Type:
- Internal cable
Description
Note: The frame does not include the thru axle, if you need it, please buy it together
Please note the size of the integrated handlebar when placing an order:
Stem Size: 70/80/90/100/110/120mm
Handlebar size: 430/450/470/490mm

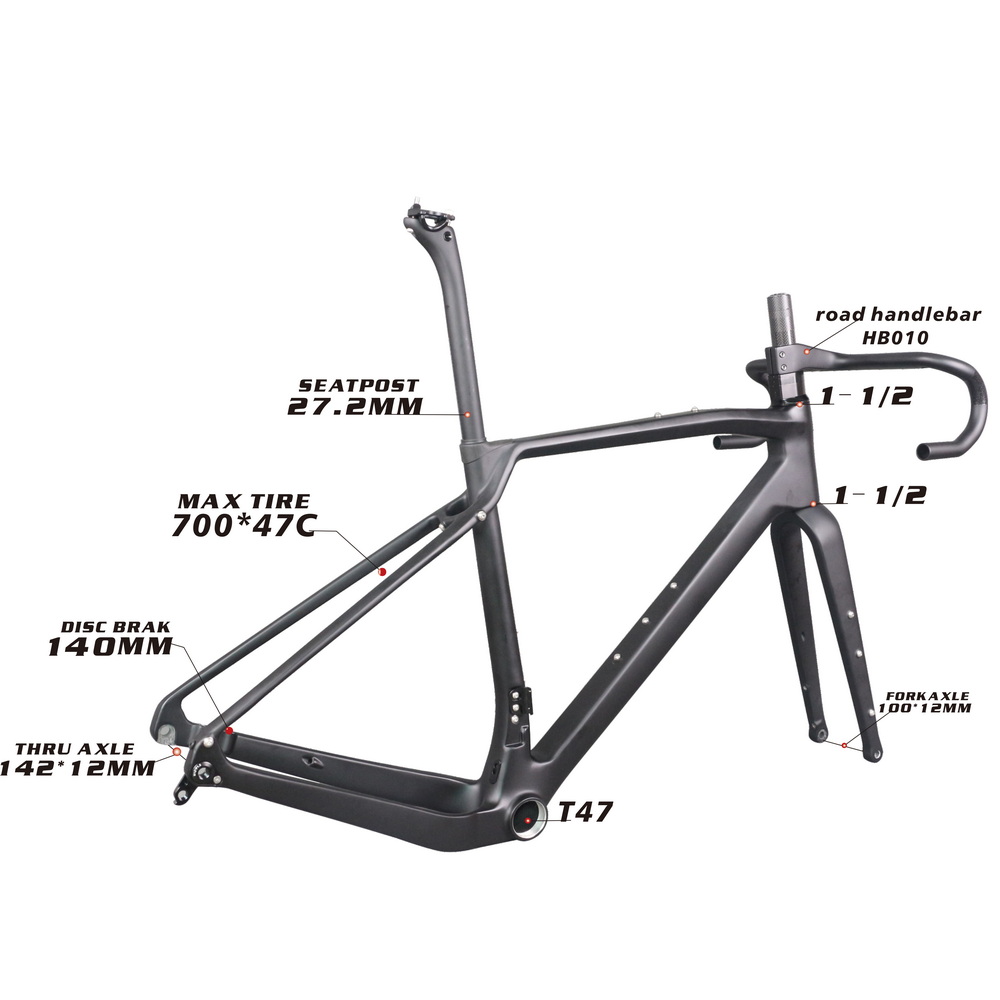

Product information

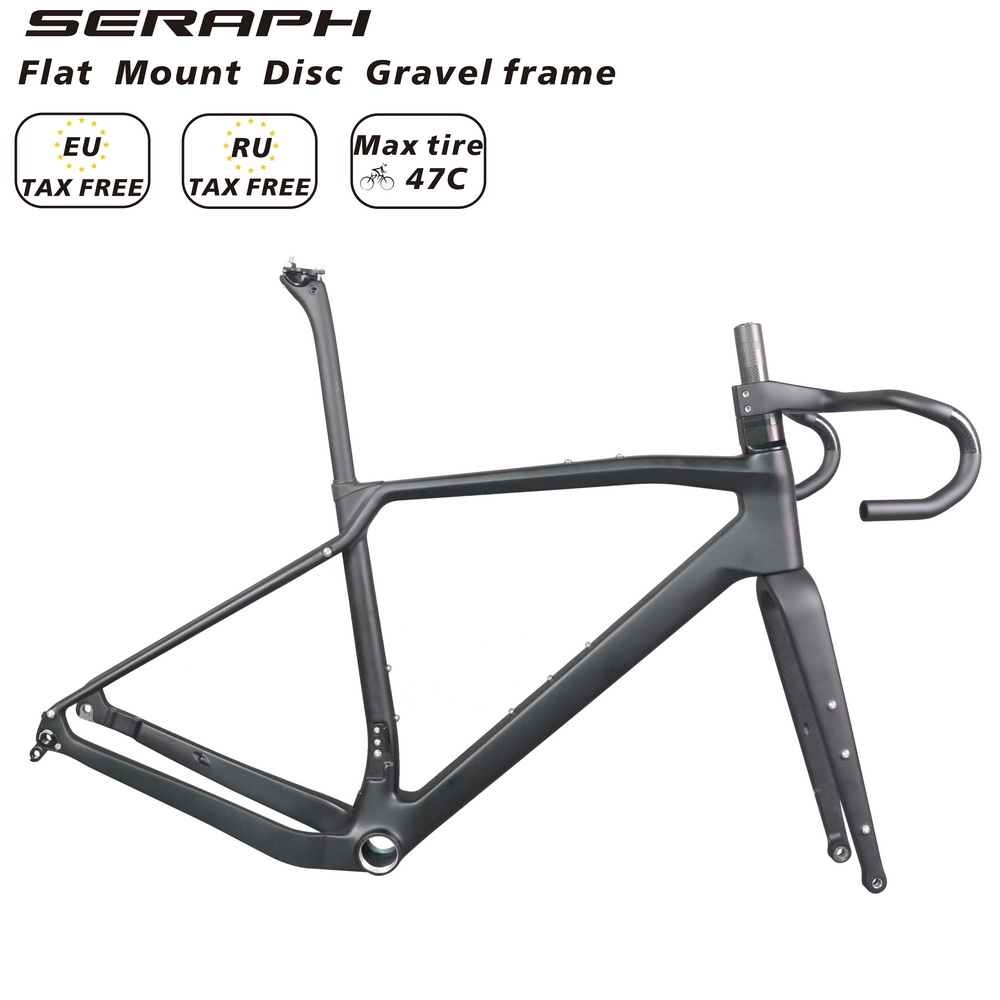

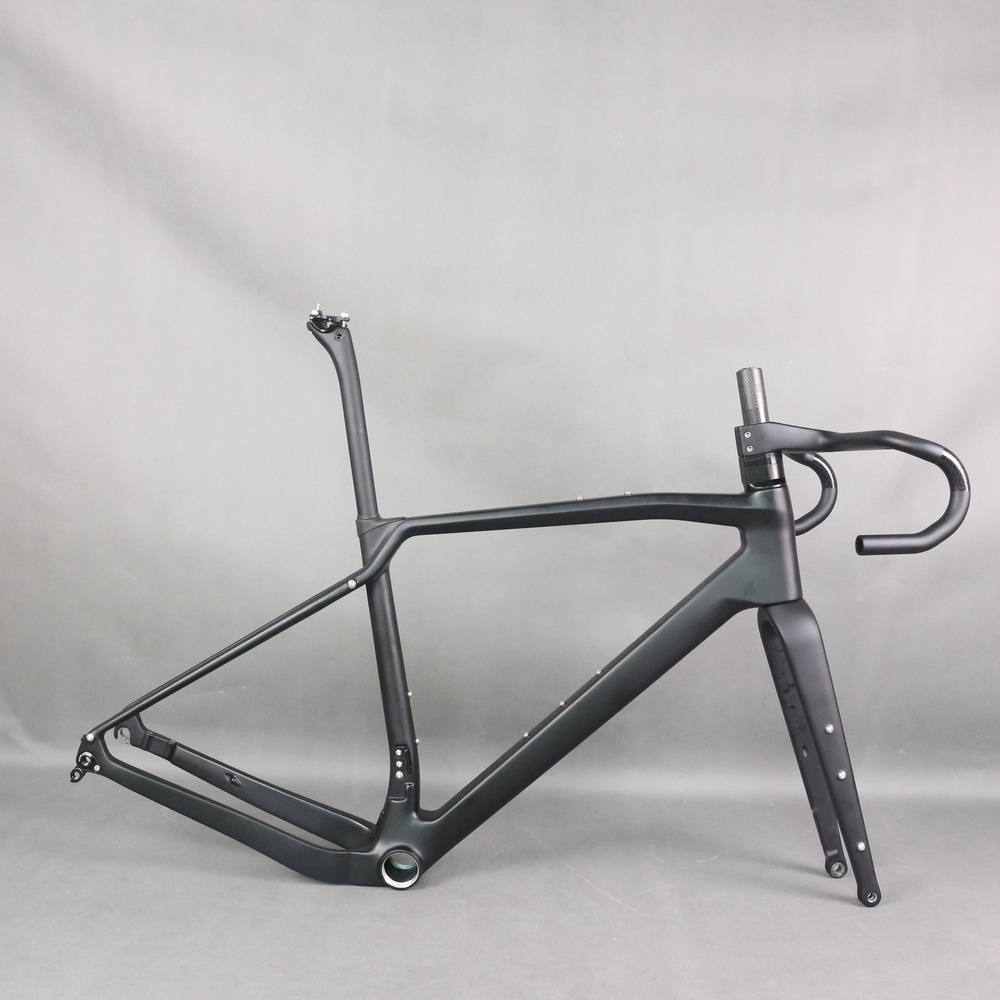

Frame Model: Full hidden cable gravel
Frame Rear Space: GR047
Material: Hight Modulus Toray t1000 Carbon Fiber
Size: 40/43/46/49/53cm

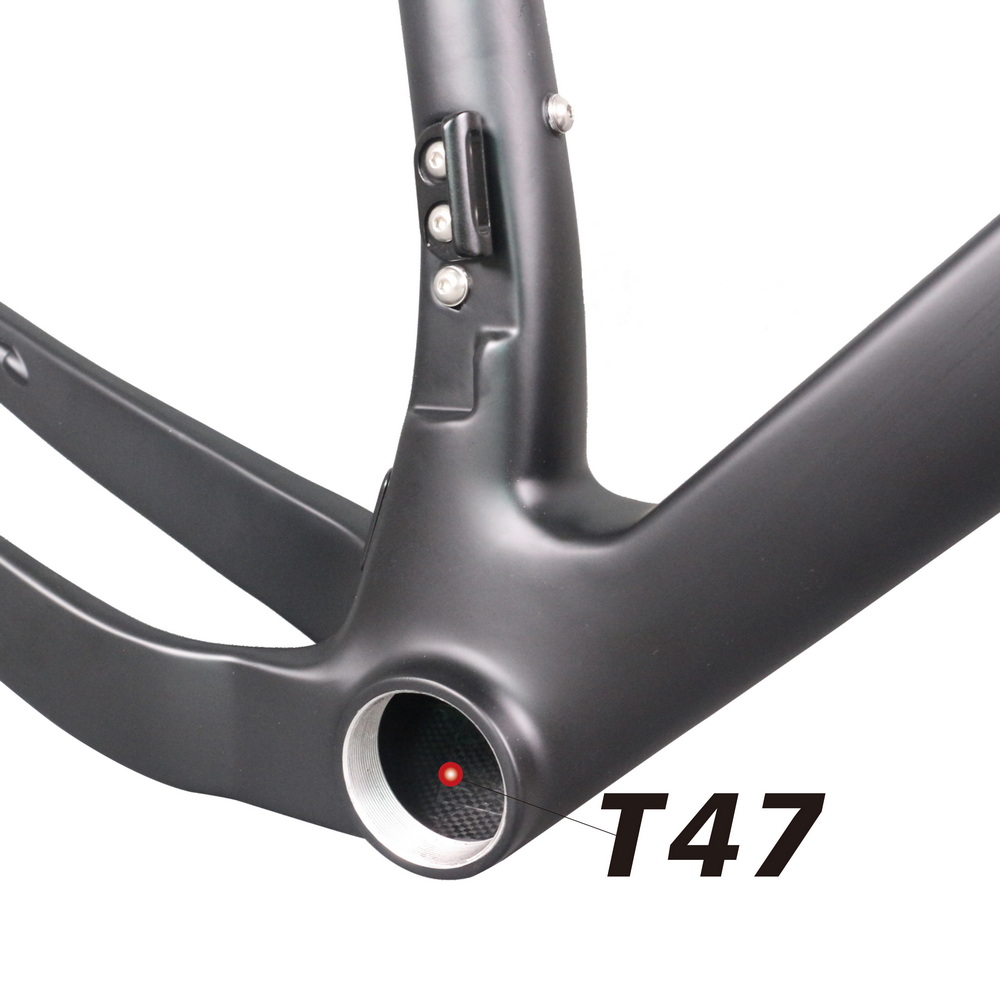

Bottom Bracket: T47 thread
Seatpost： zero/setback seatpost

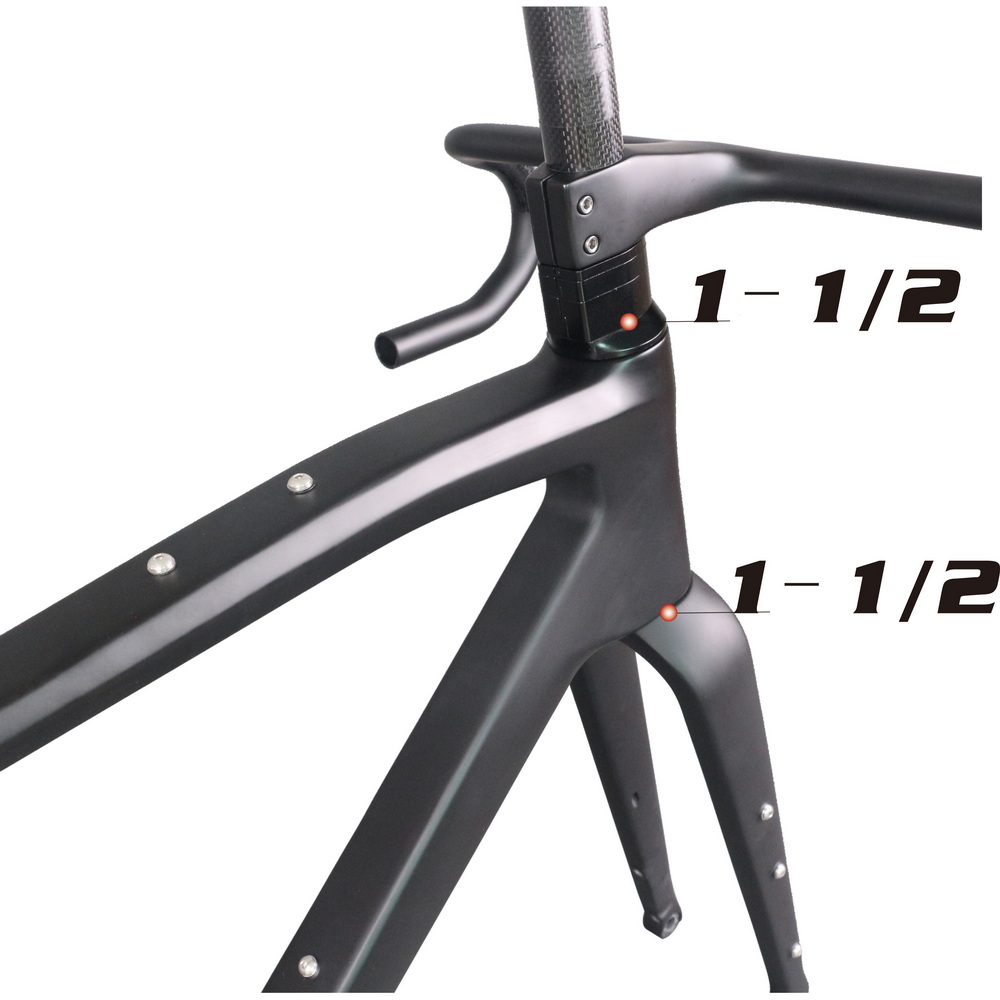

Headset: 1 -1/2 "above and 1 -1/2" below
Seatpost size： 27.2mm seatpost
Weave: UD

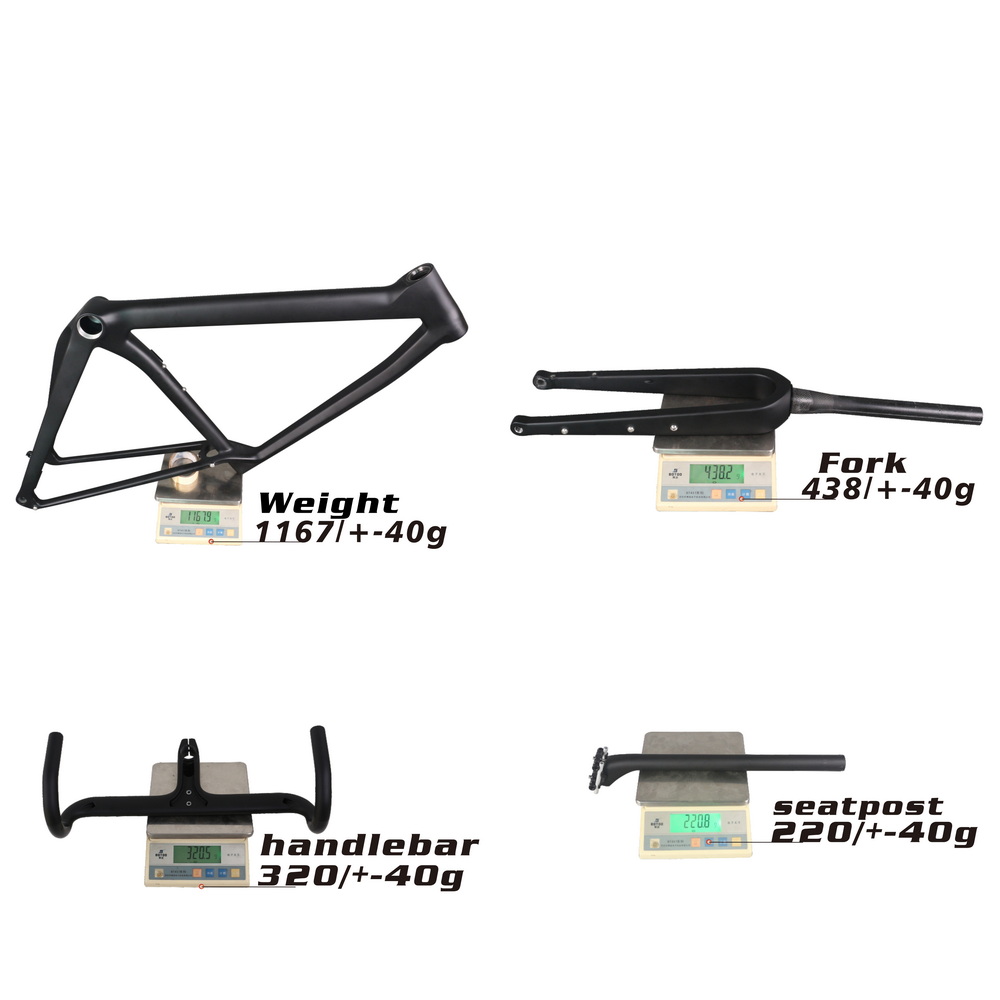

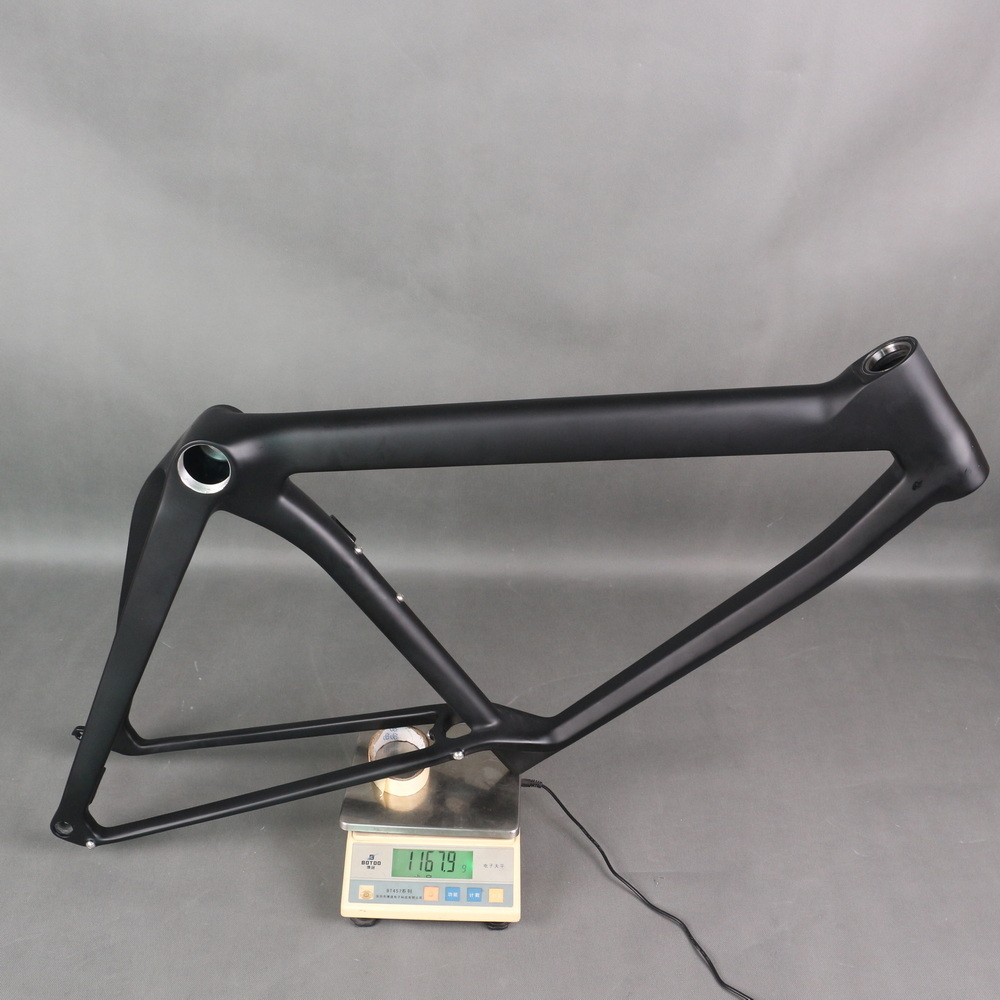

Frame weight： 1167/+-40g (46cm)

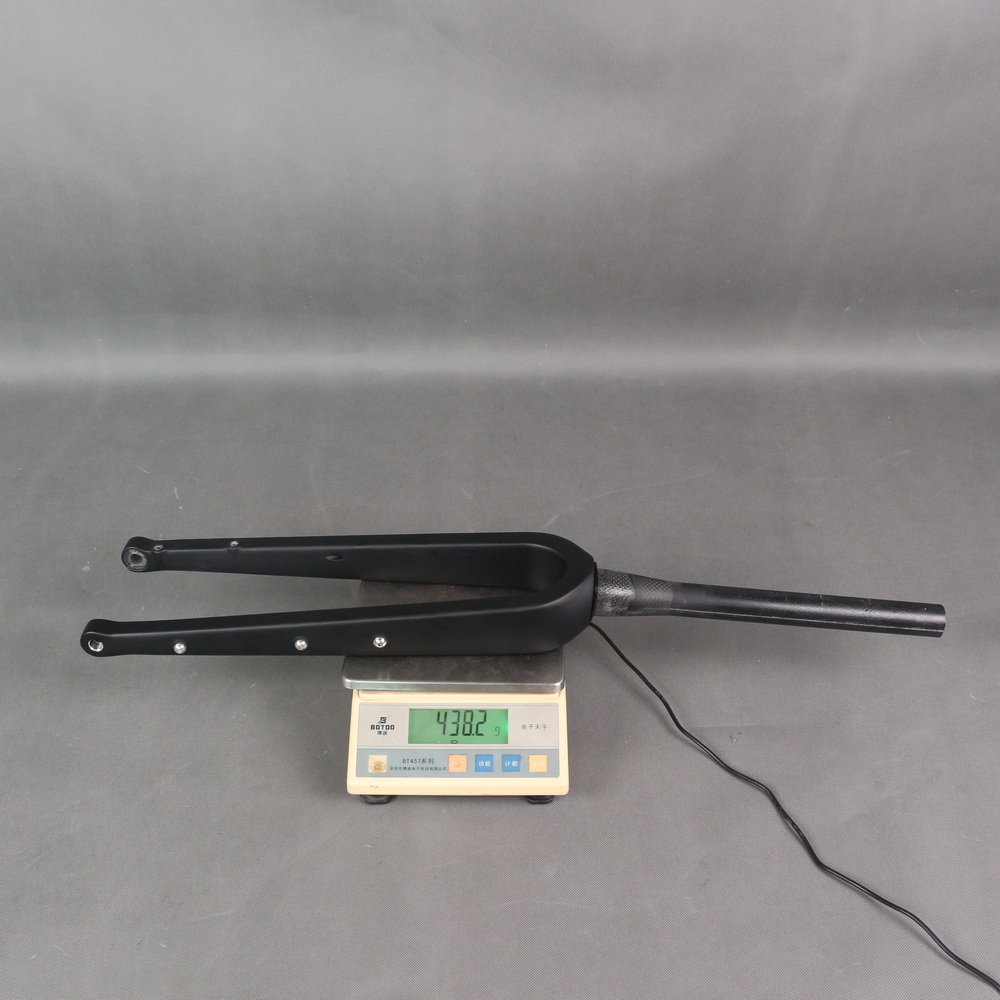

Fork weight： 438+/-20g

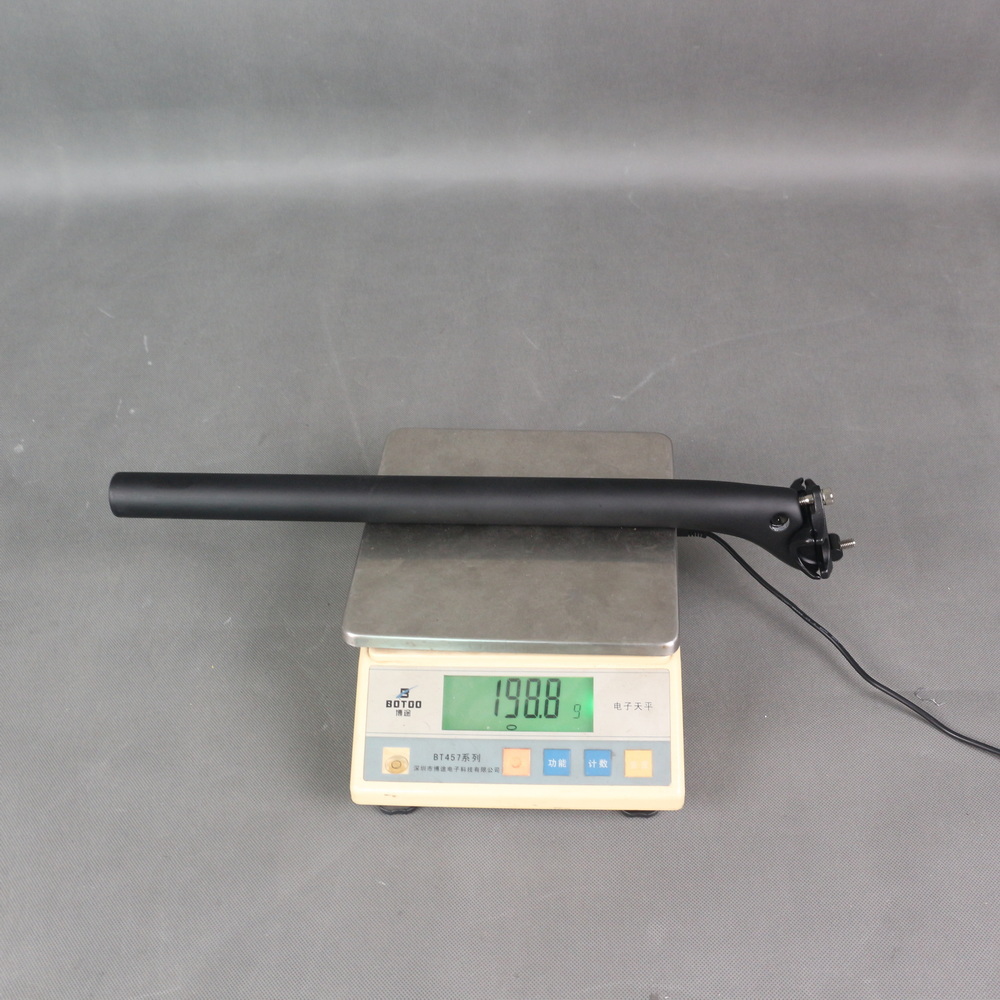

seat post weight： 198/+-10g

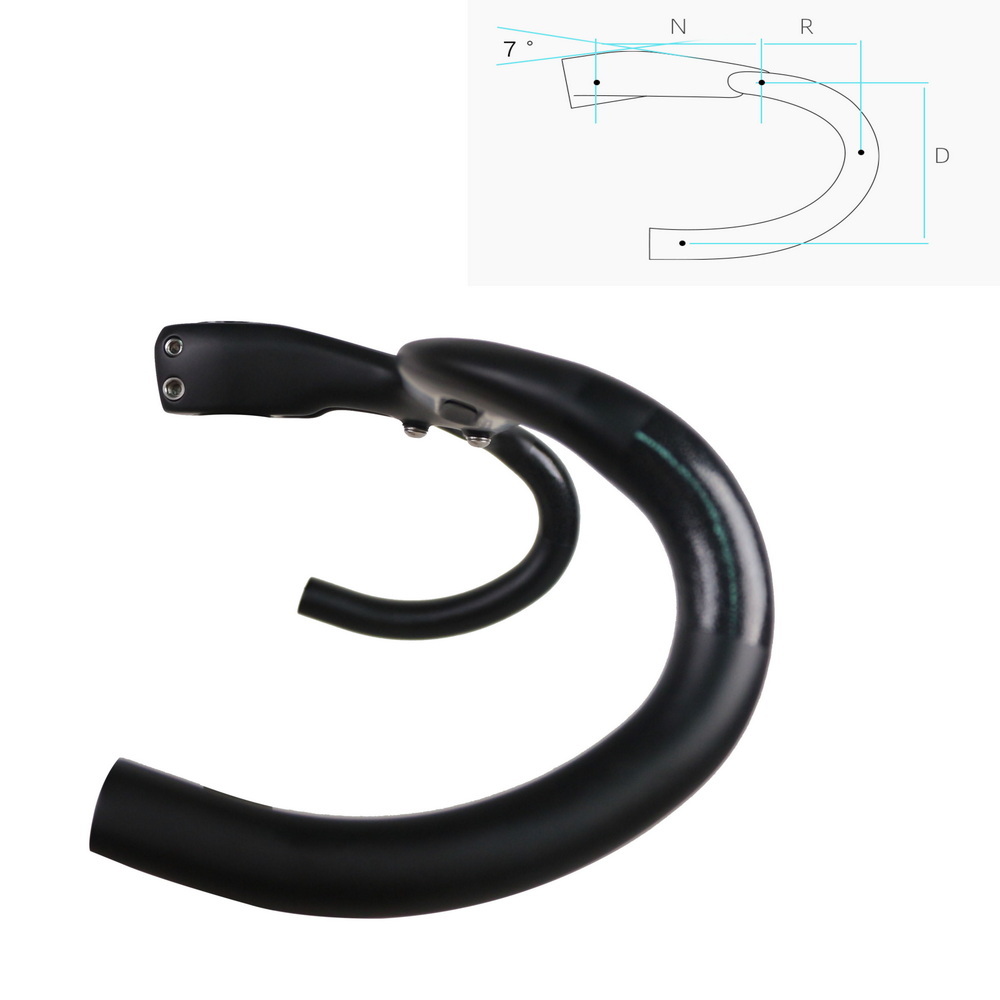

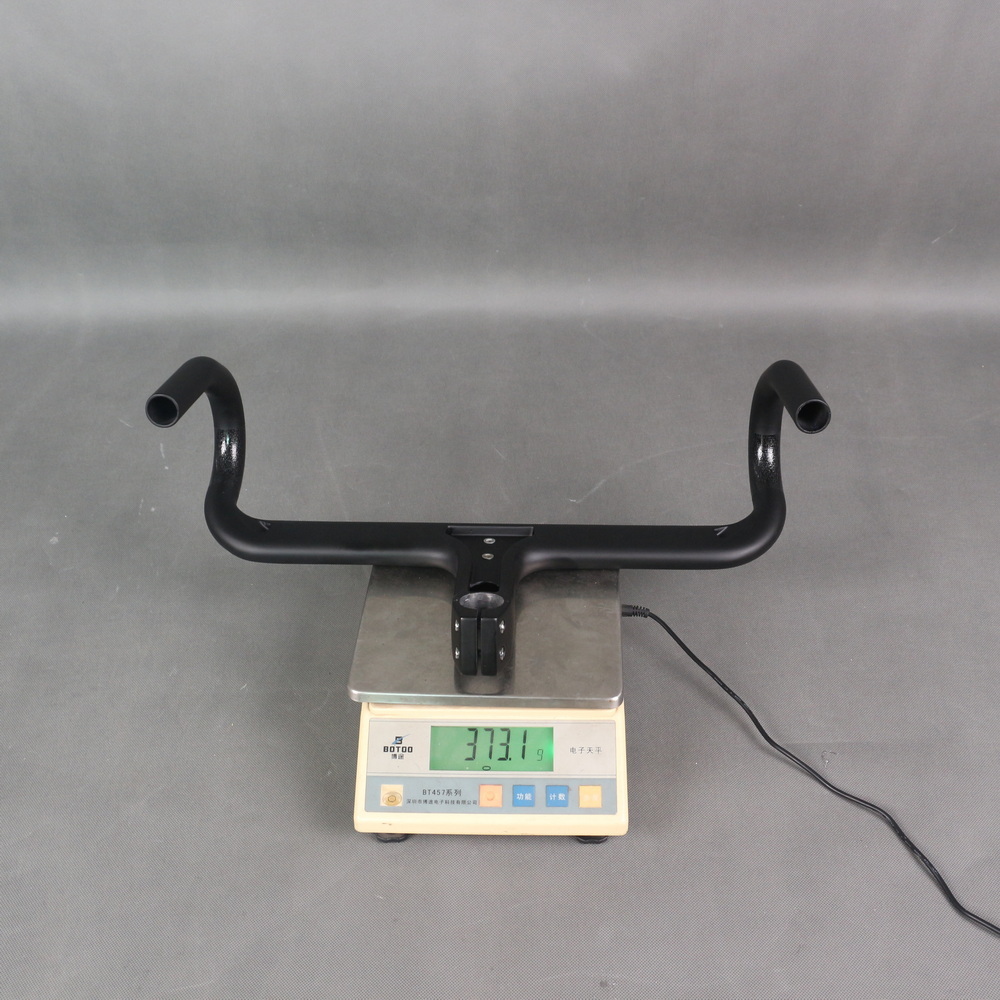

HB047 handlebar weight： 360/+-15g
Disc Rotor: Front and Rear 140mm (if 160mm need add adapter )
Stem Size: 70/80/90/100/110/120mm

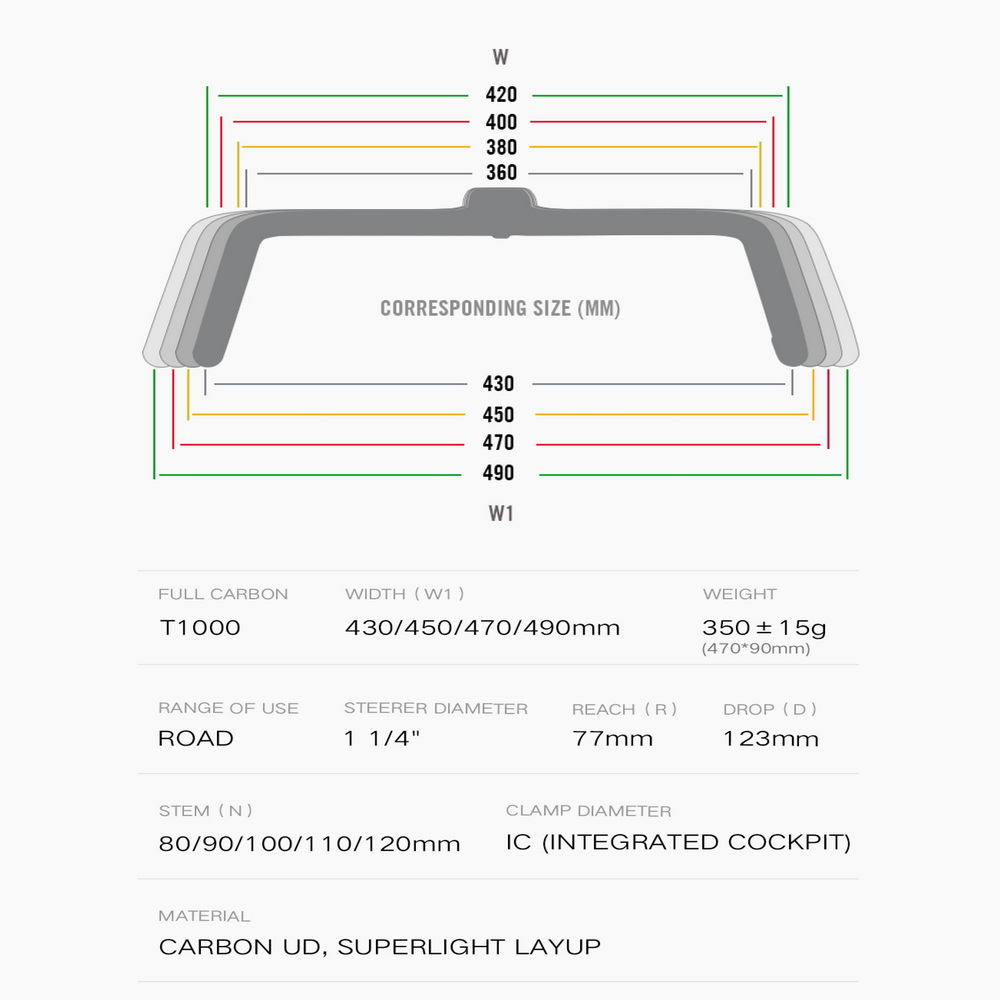

Handlebar size: 430/450/470/490mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Cable Type: Internal cable
Max Tire: 700C*47C
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type: Flat Mount Disc Brake
Warranty: 2 years
Geometry
Detail images

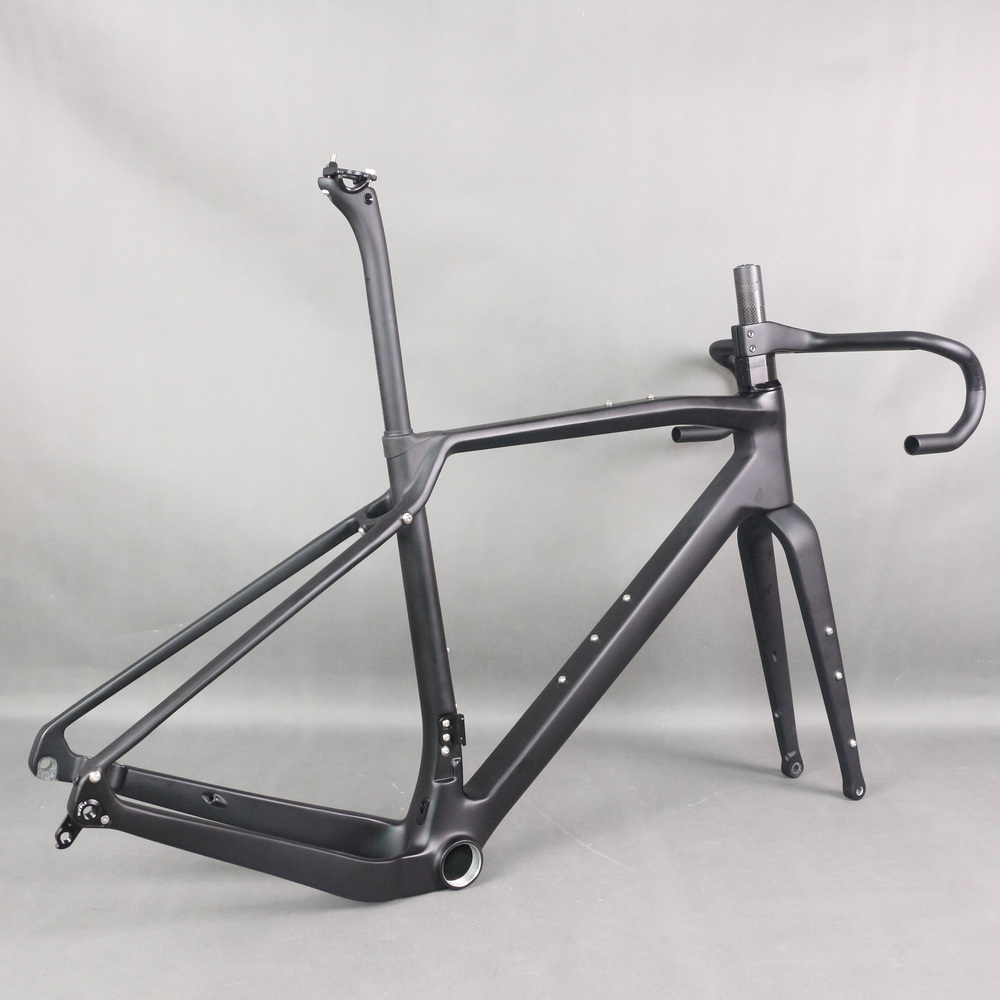

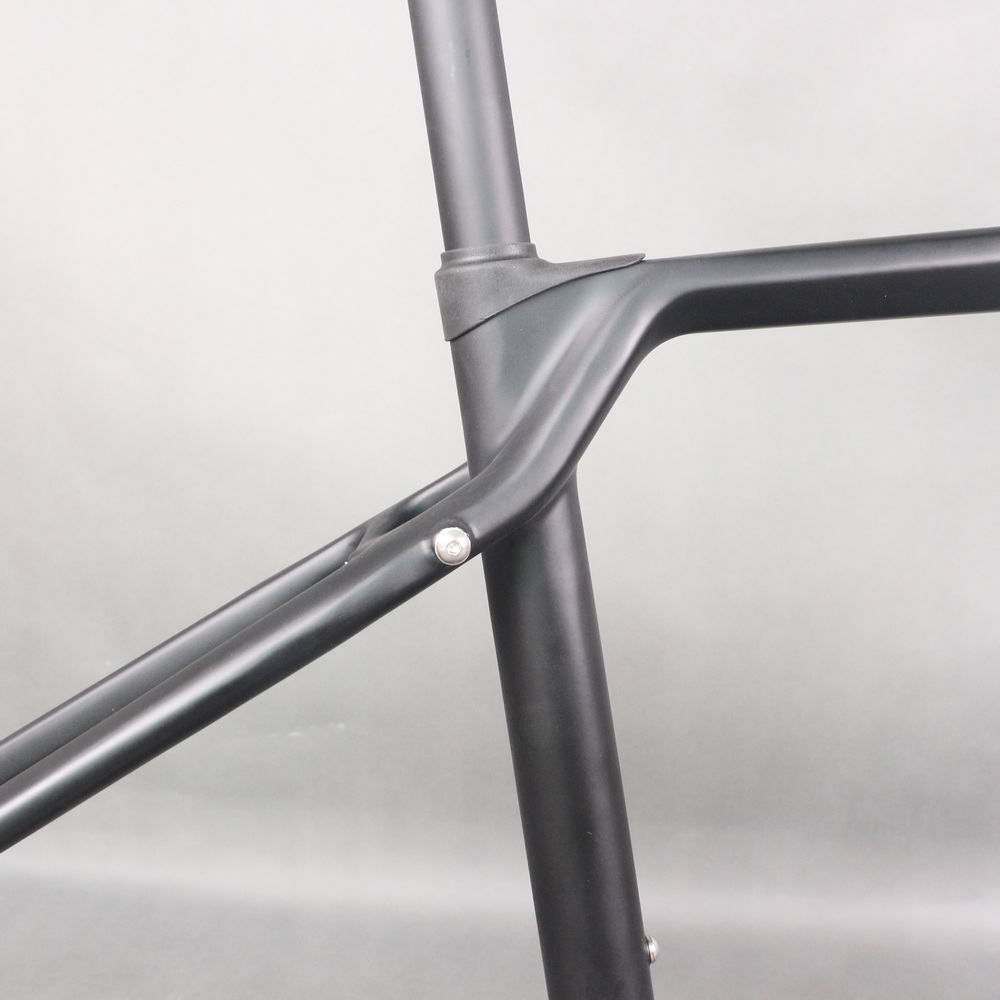

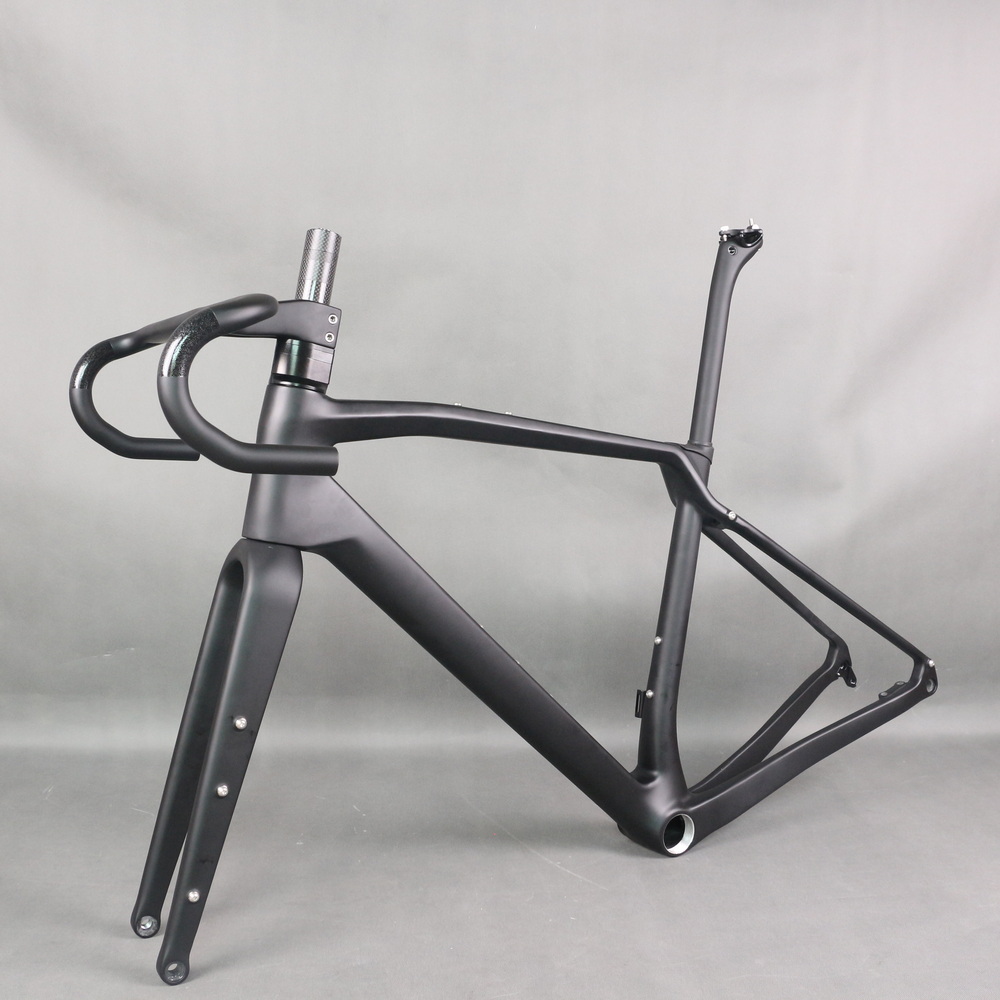

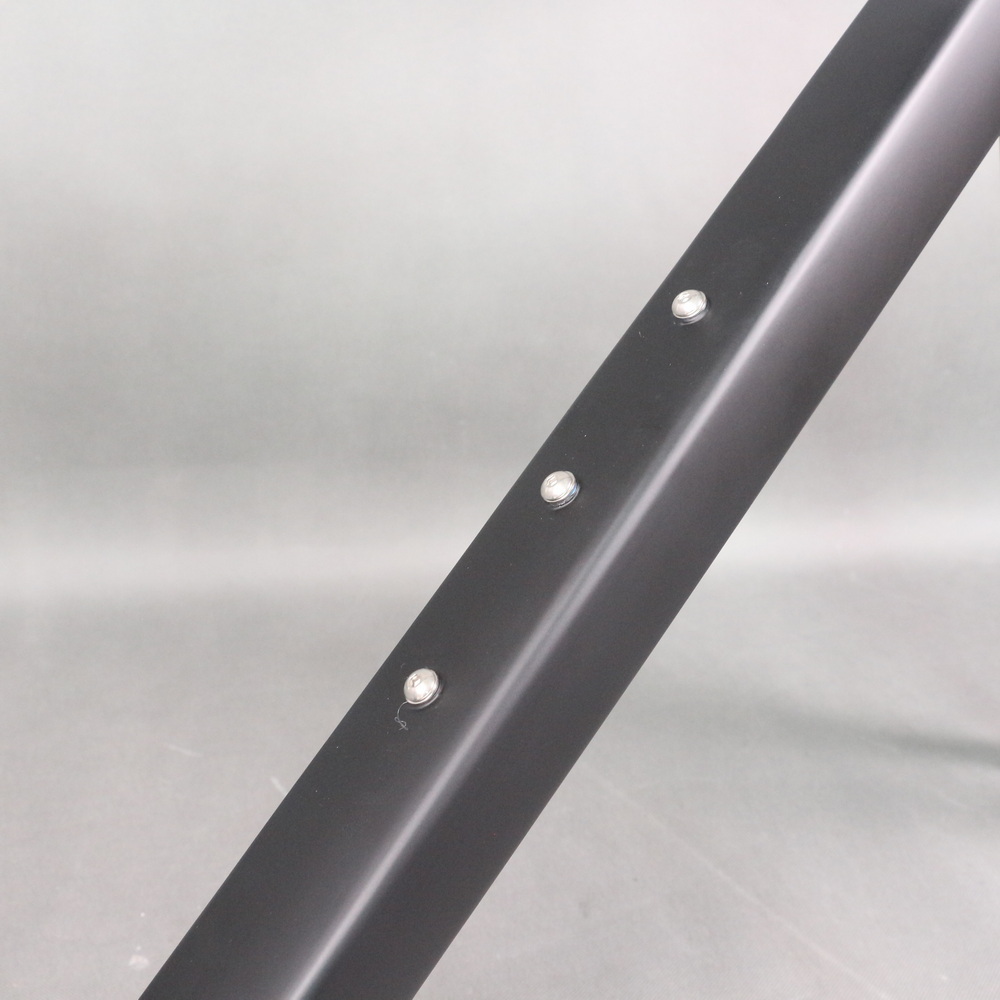

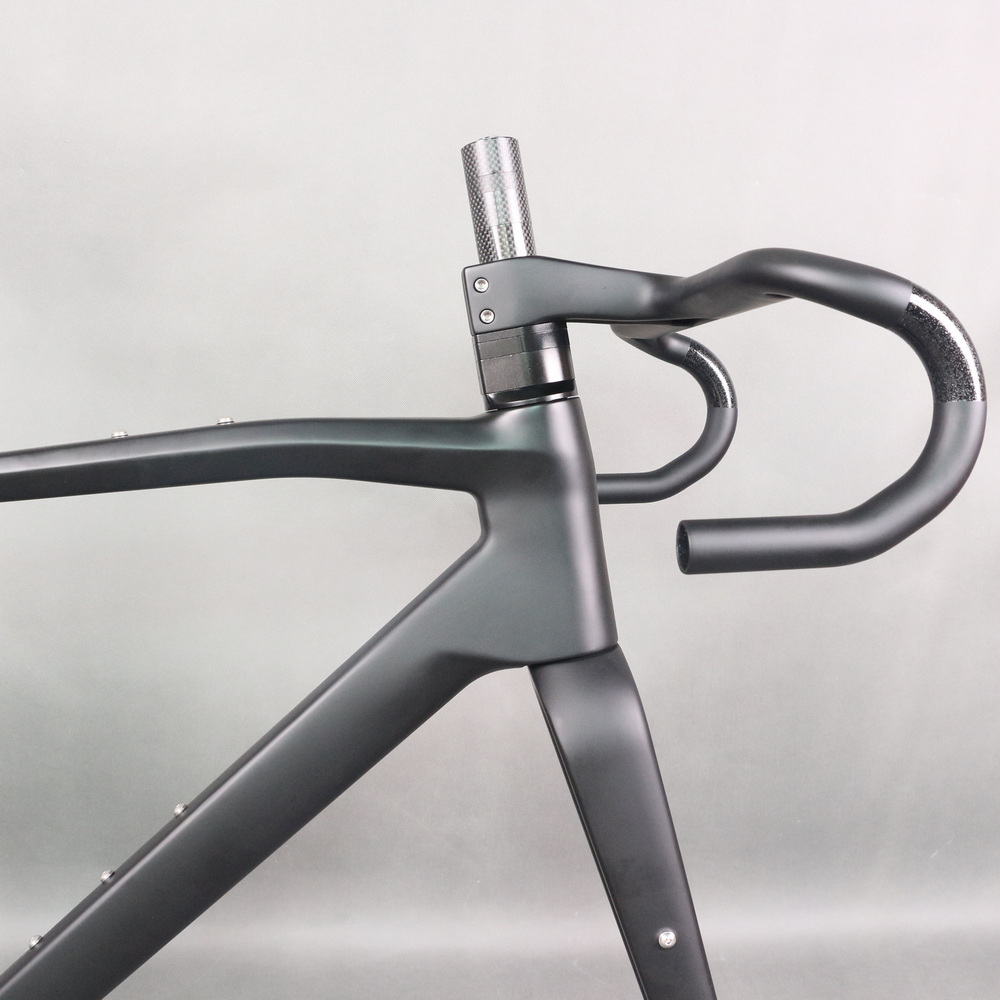

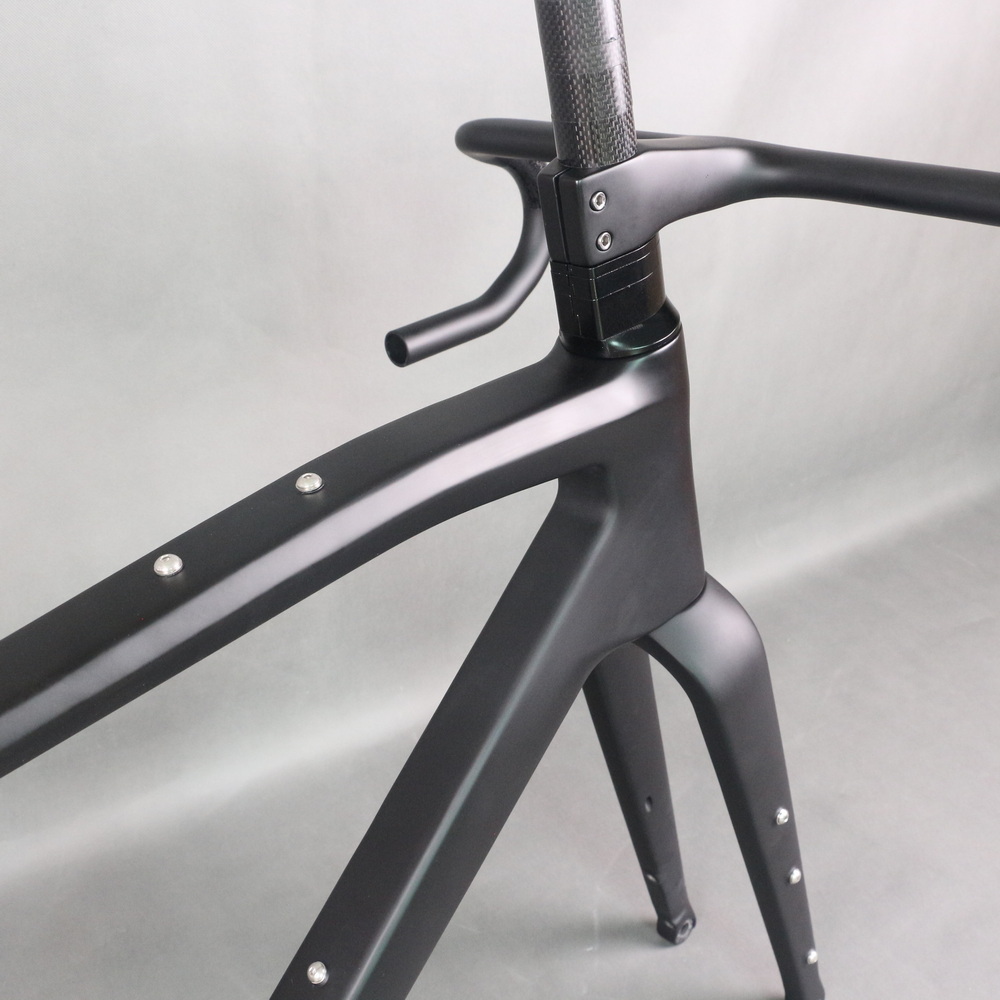

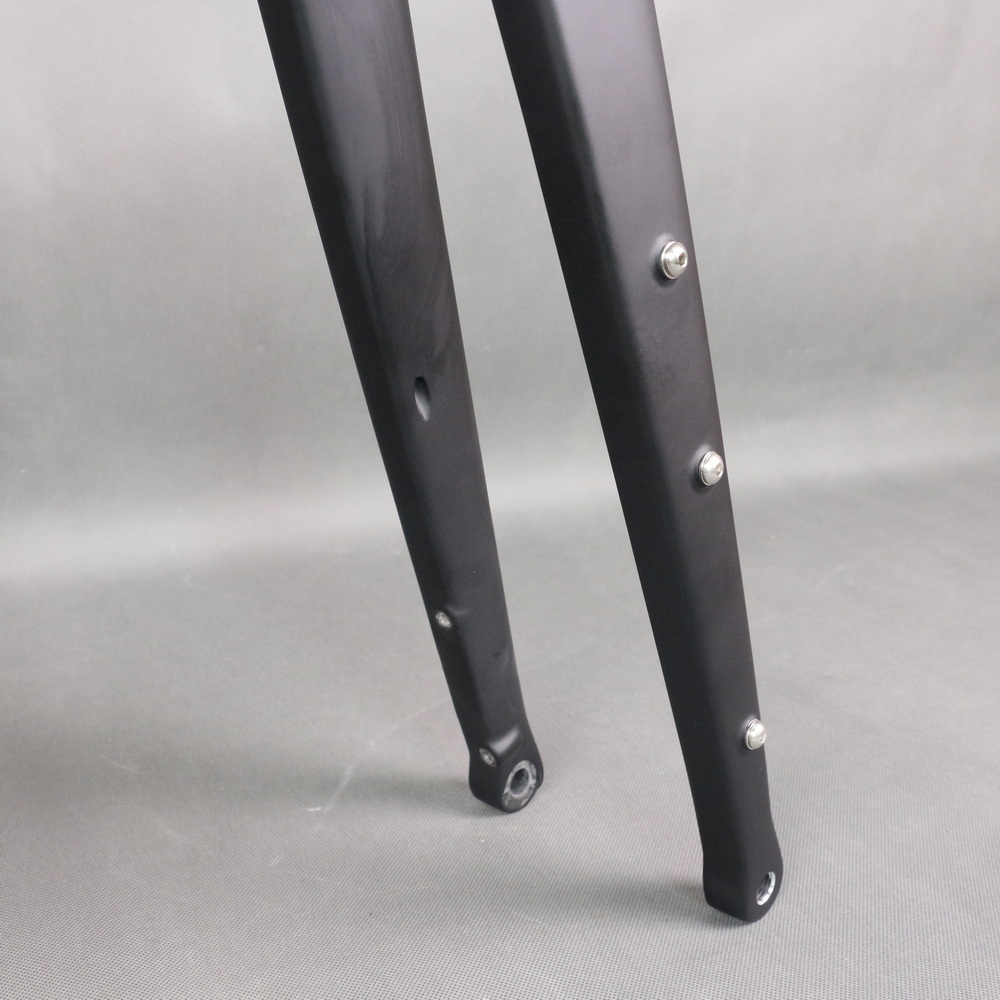

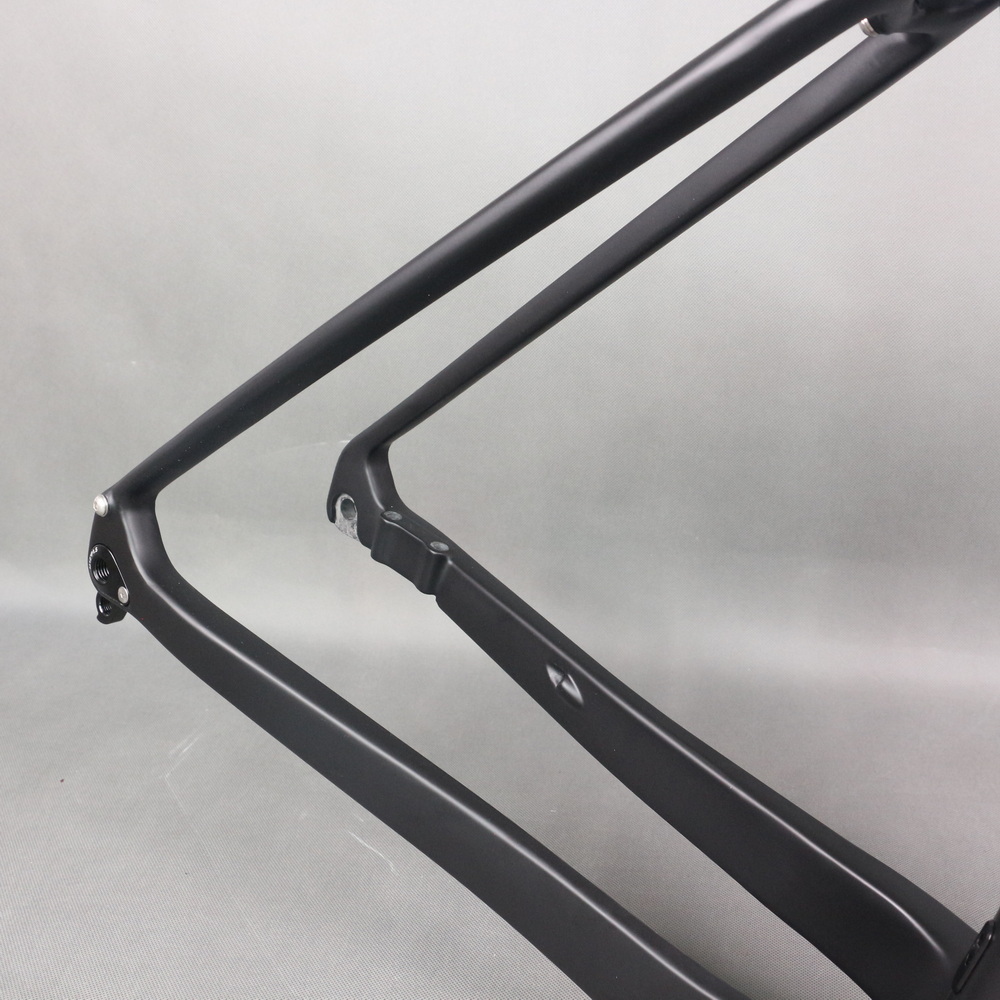

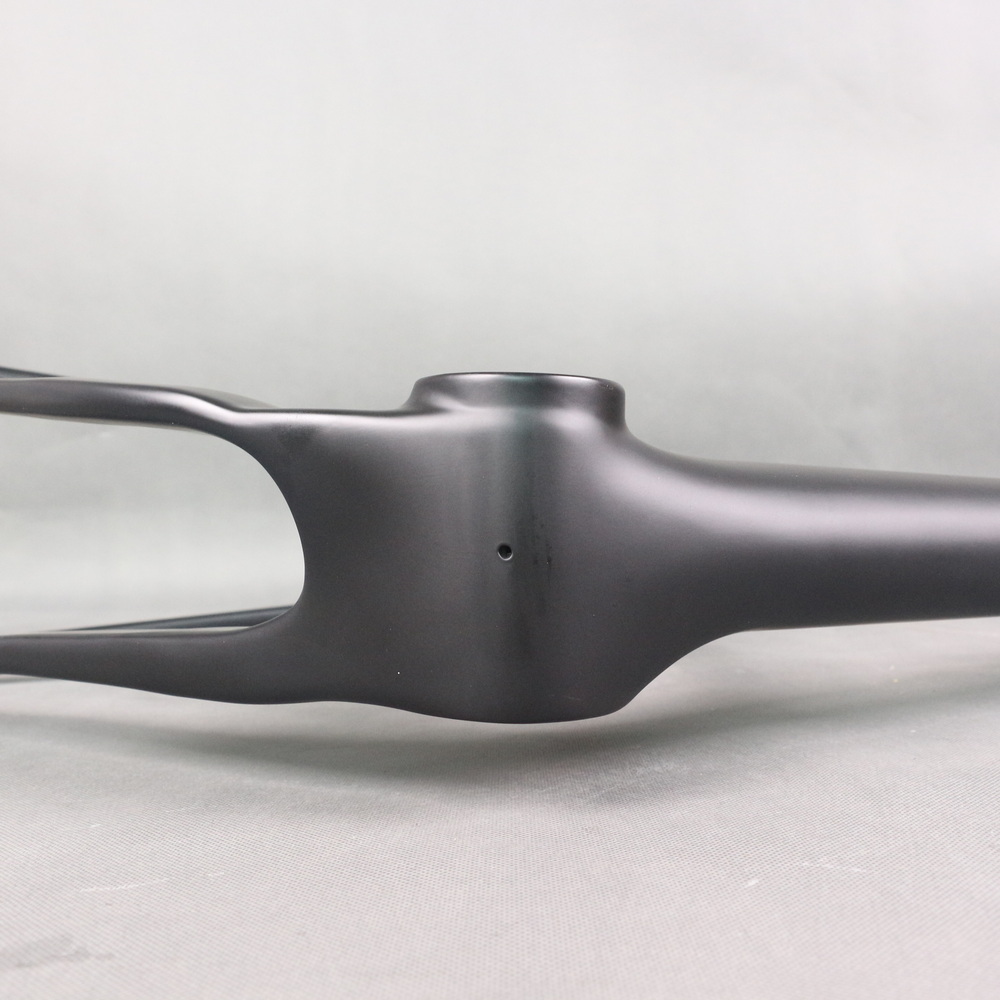

Below picture frame size is 46cm
Package

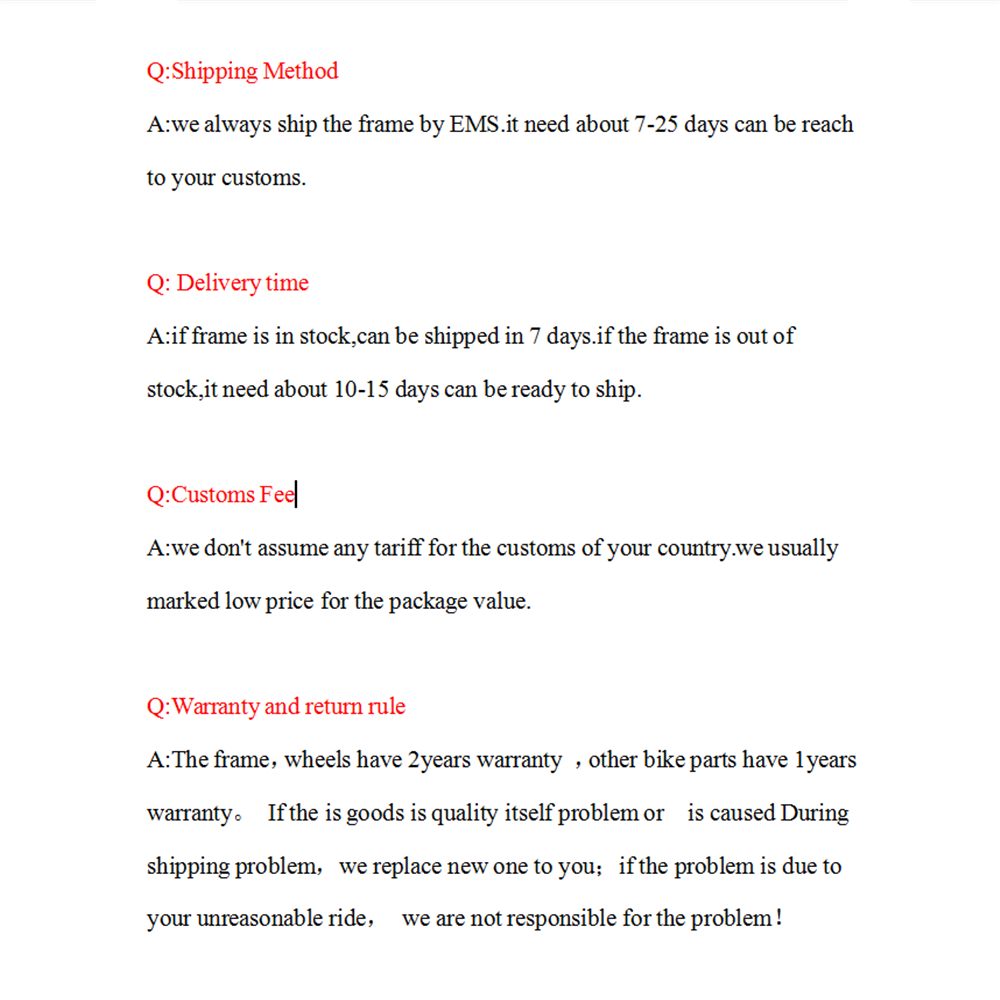

FAQ
