Full Hidden Cable Disc Gravel Bike Frame GR048 Carbon Fiber T1000 T47 Thread Bottom Bracket Max Tire 700X50C

The frame does not include thru axle and computer stand, if you need it, please buy it together

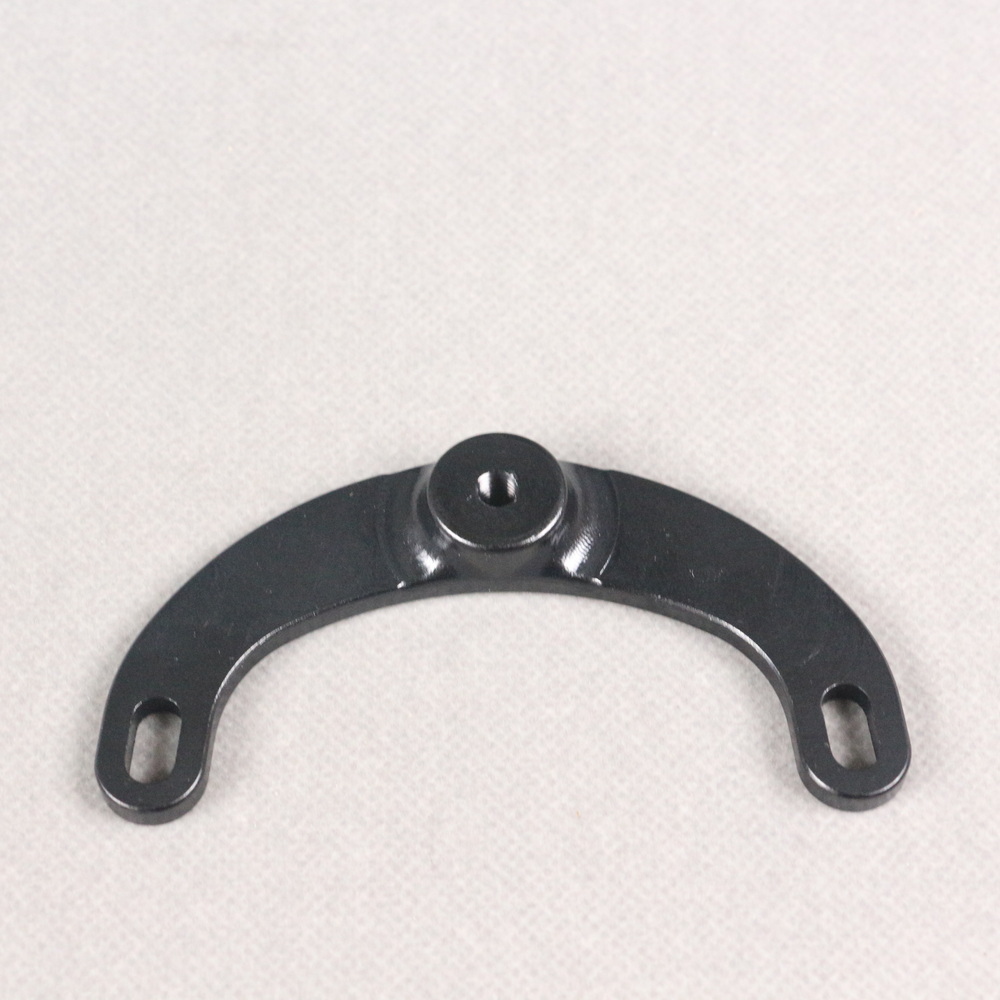

Fender accessories $10/pcs
If you need, please contact customer service

Please note the size of the integrated handlebar when placing an order:

Stem Size: 70/80/90/100/110/120mm
Handlebar size: 430/450/470/490mm

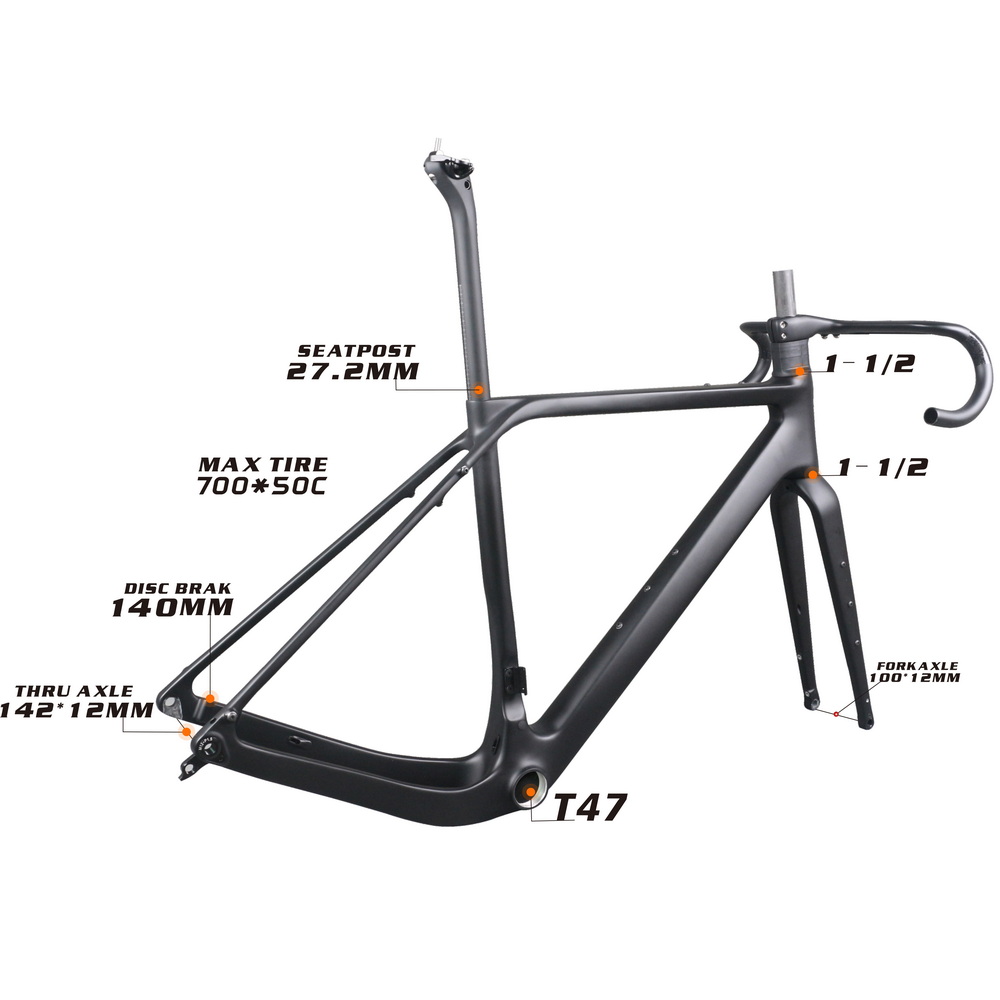

Product information

Frame Model: Full hidden cable gravel
Frame Rear Space: GR048
Material: Hight Modulus Toray t1000 Carbon Fiber
Size: XS/S/M/L/XL

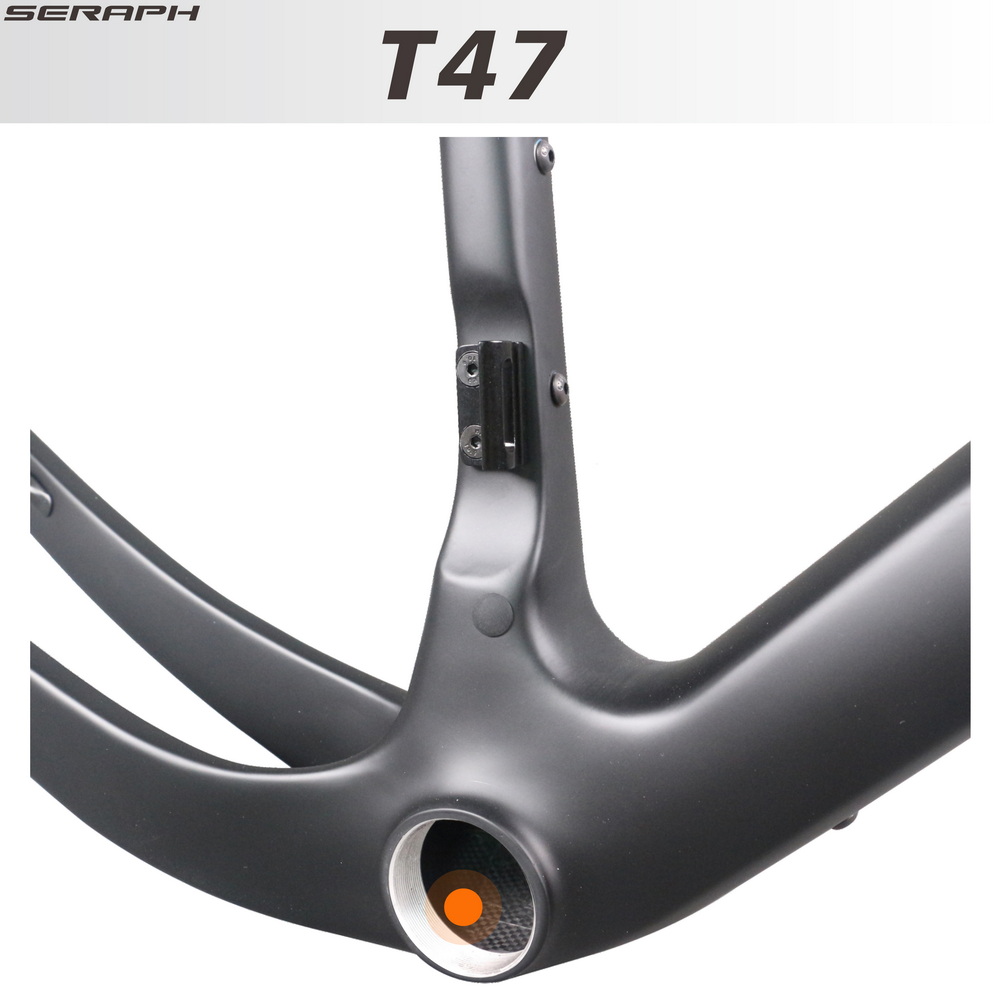

Bottom Bracket: T47 thread
Seatpost： zero/setback seatpost

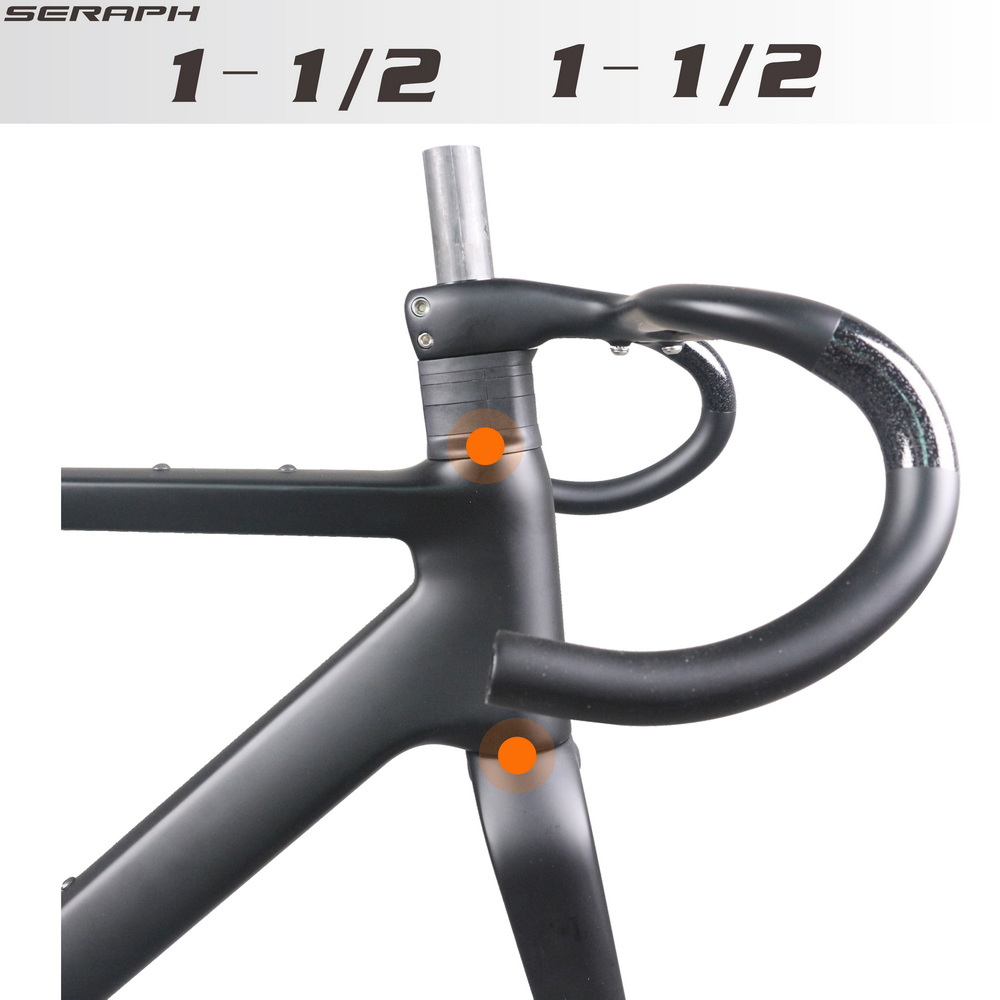

Headset: 1 -1/2 "above and 1 -1/2" below

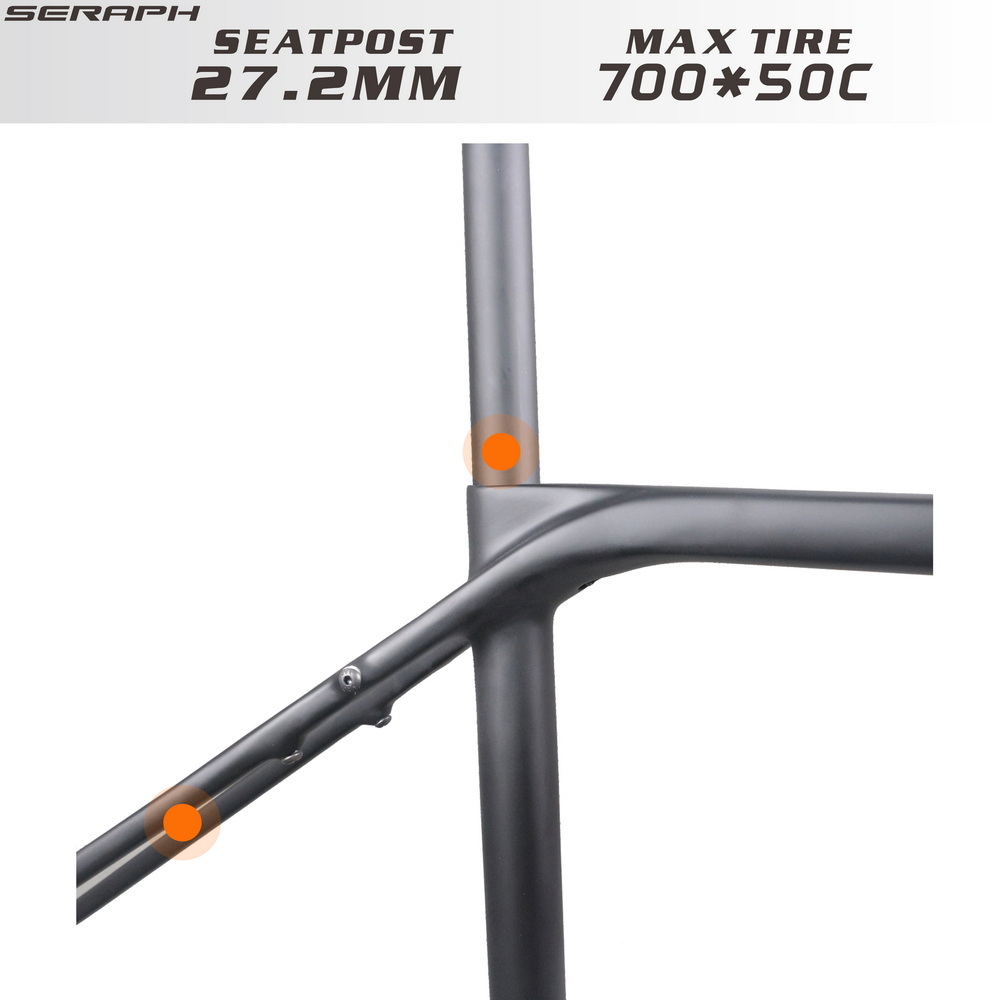

Seatpost size： 27.2mm seatpost
Weave: UD

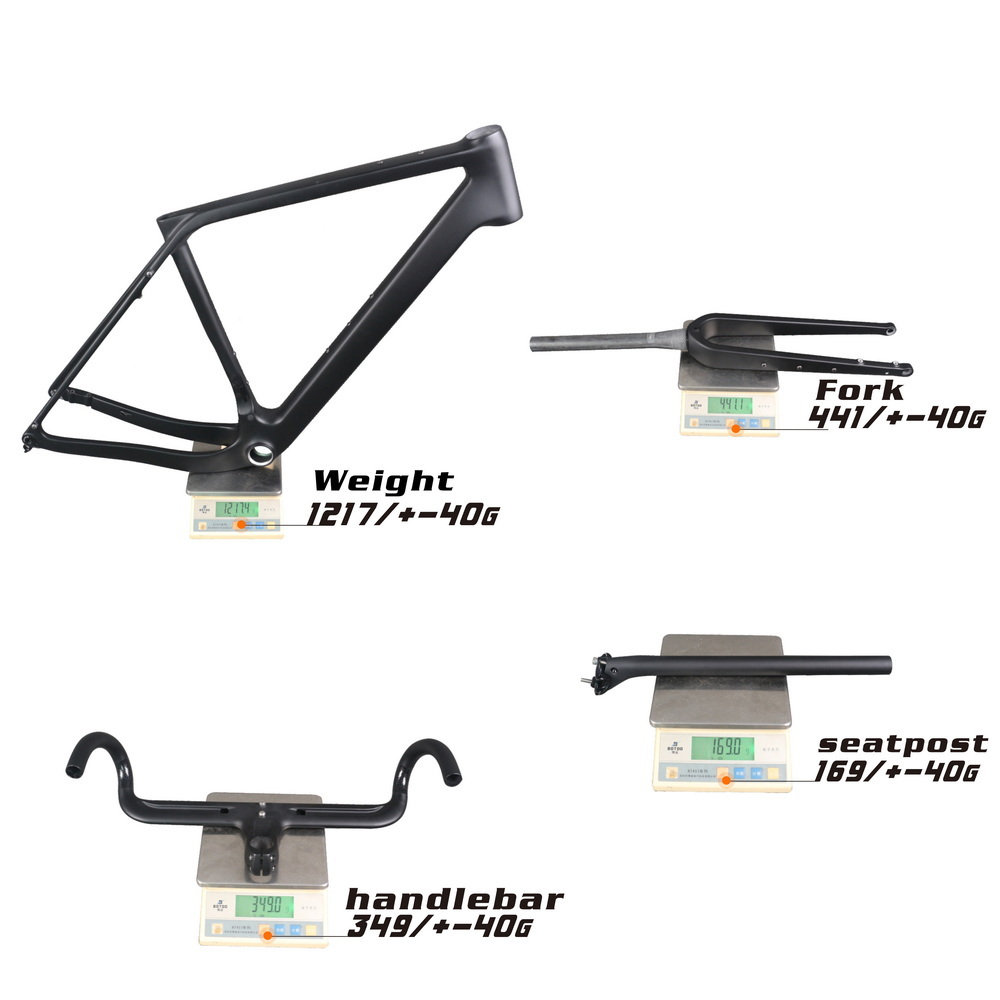

Frame weight： 1217/+-40g (M)
Fork weight： 441/+-30g
seat post weight： 169/+-20g
HB047 handlebar weight： 349/+-20g

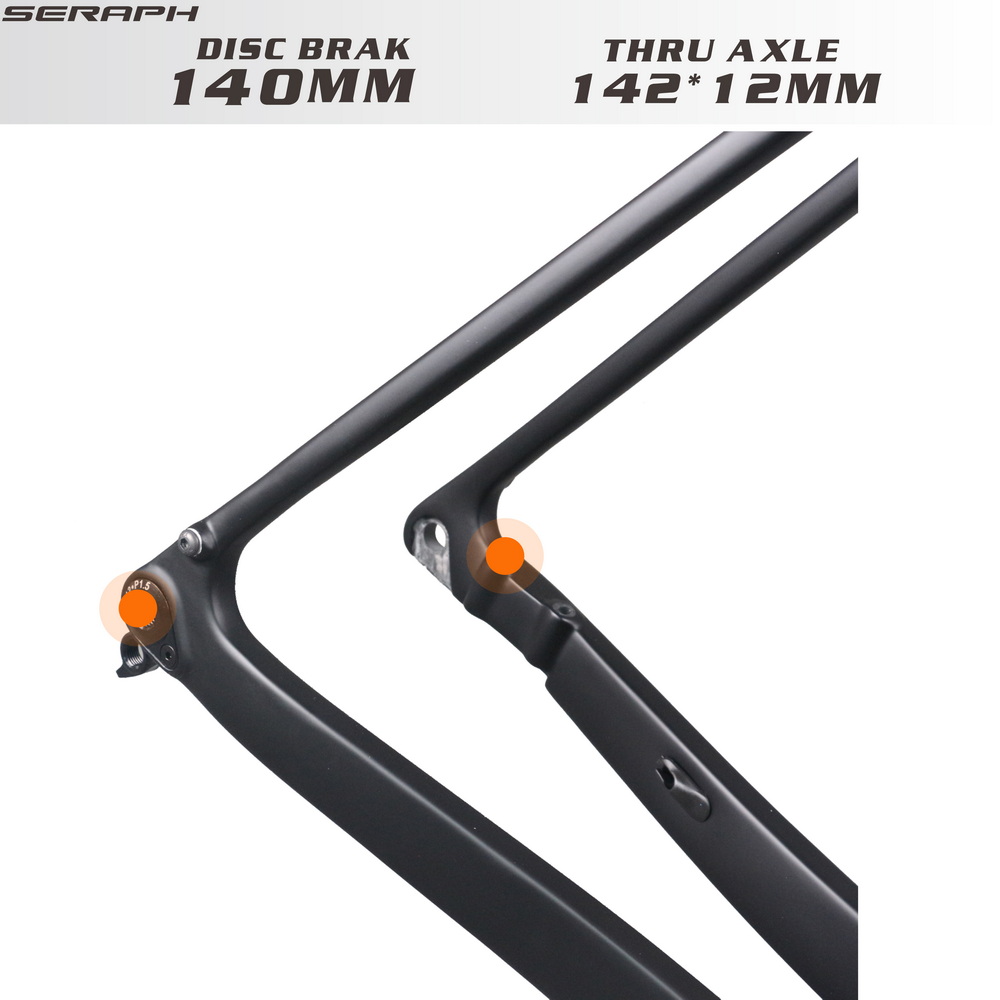

Disc Rotor: Front and Rear 140mm (if 160mm need add adapter )
Stem Size: 70/80/90/100/110/120mm

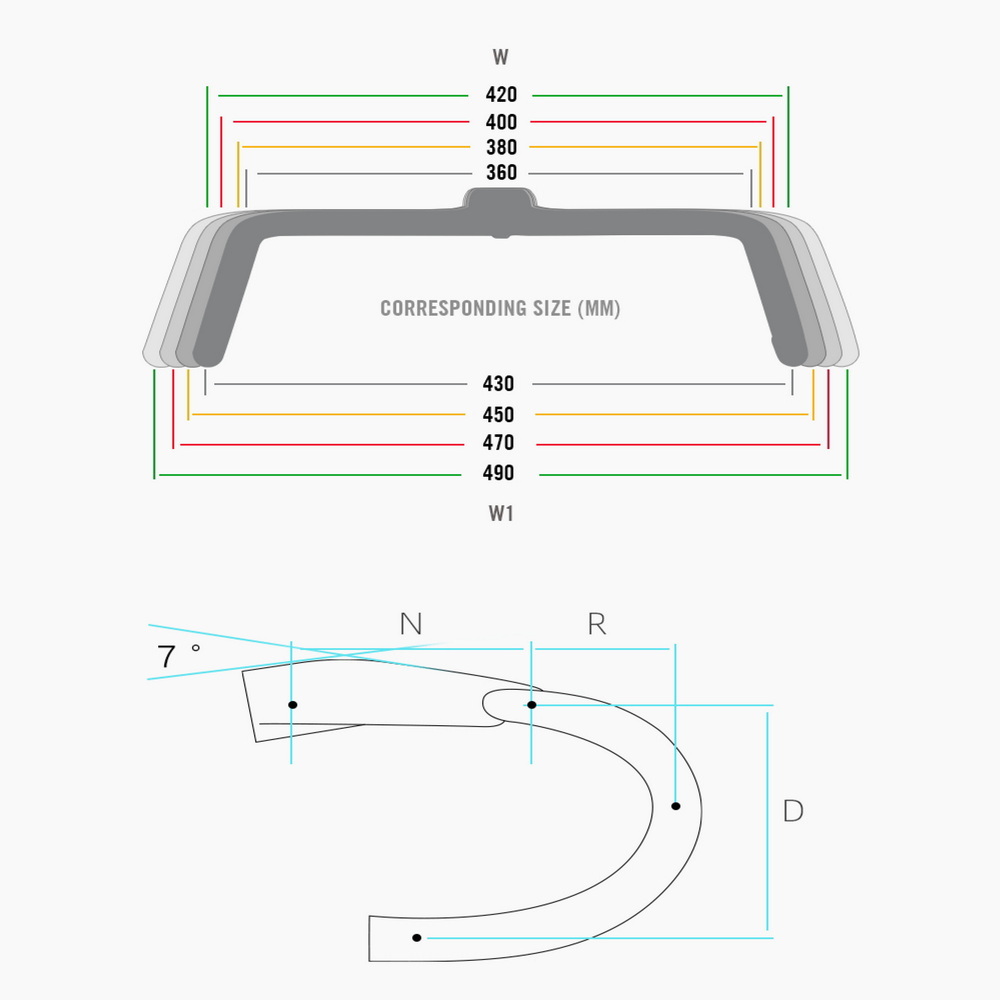

Handlebar size: 430/450/470/490mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Cable Type: Internal cable
Max Tire: 700C*50C
Single speed Crankset： 42T
Double speed Crankset： shimano 50-39T
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Disc Brake
Warranty: 2 years

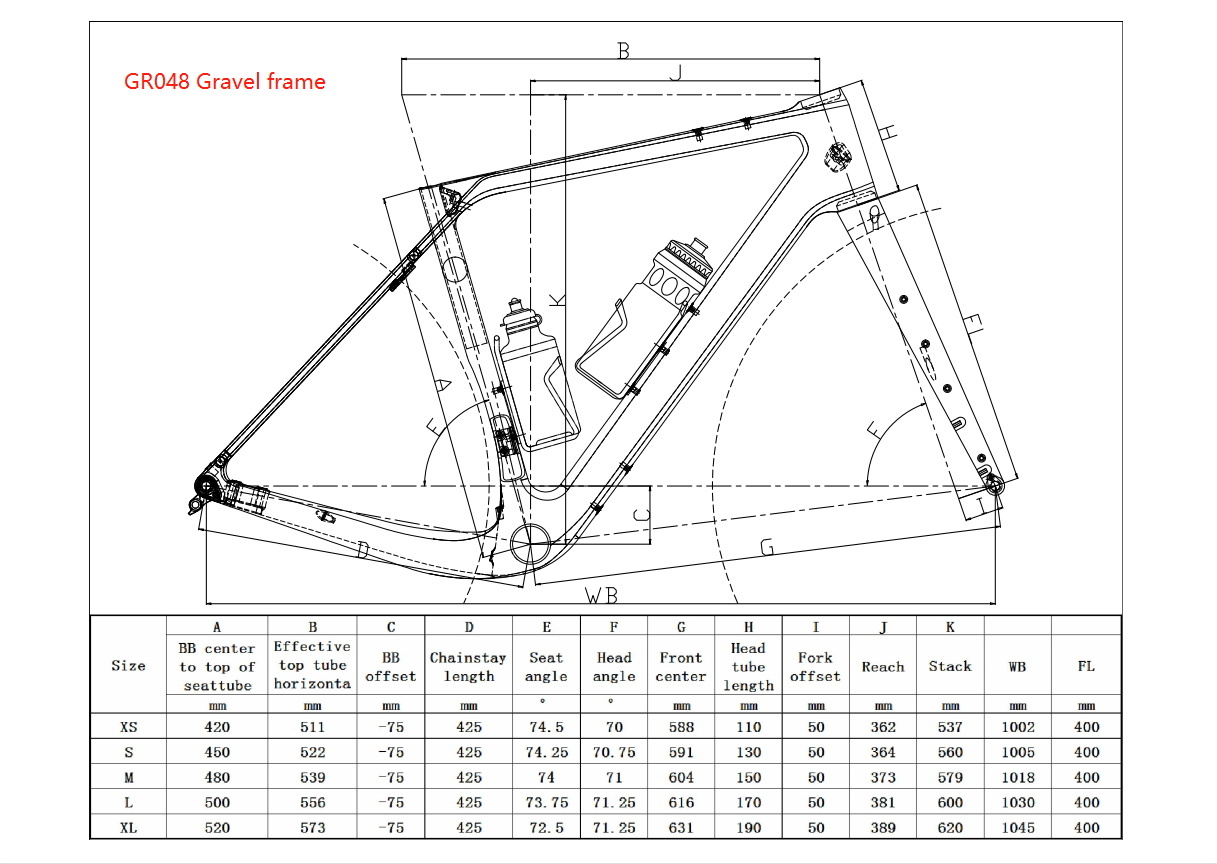

Geometry

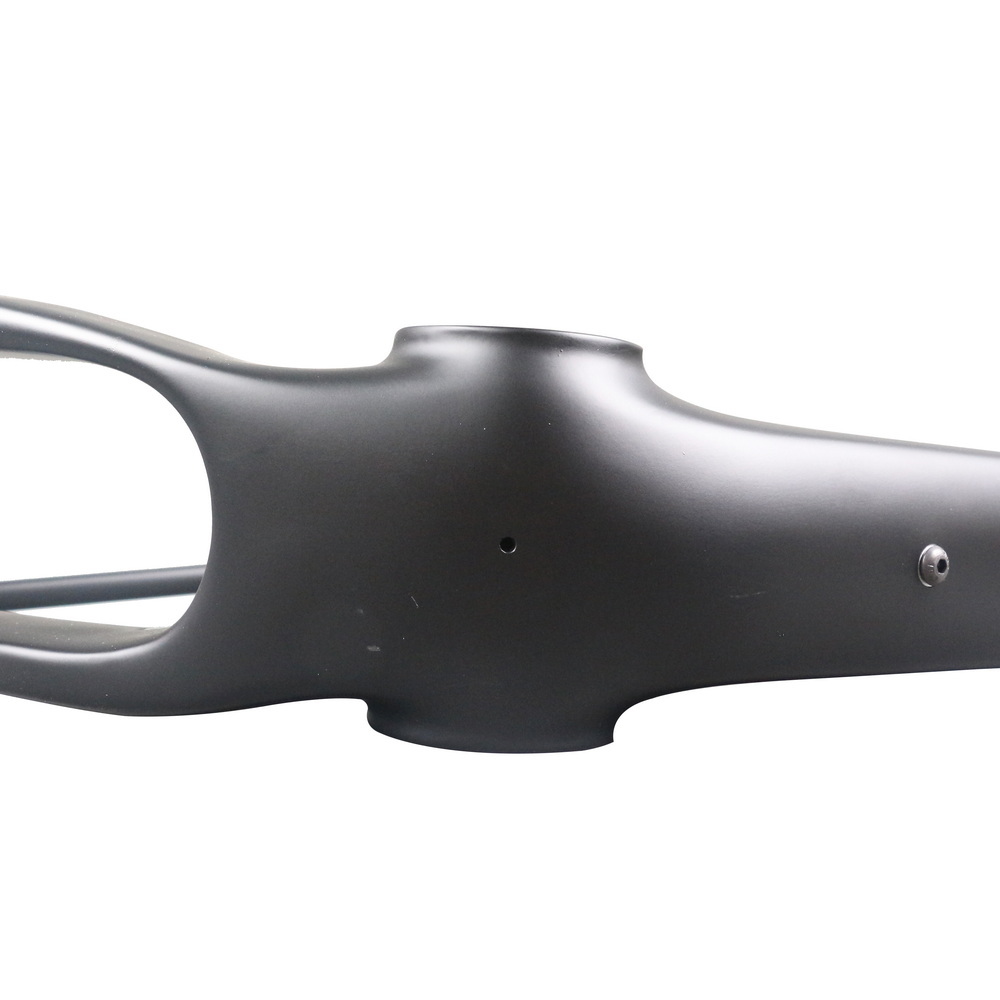

Detail images

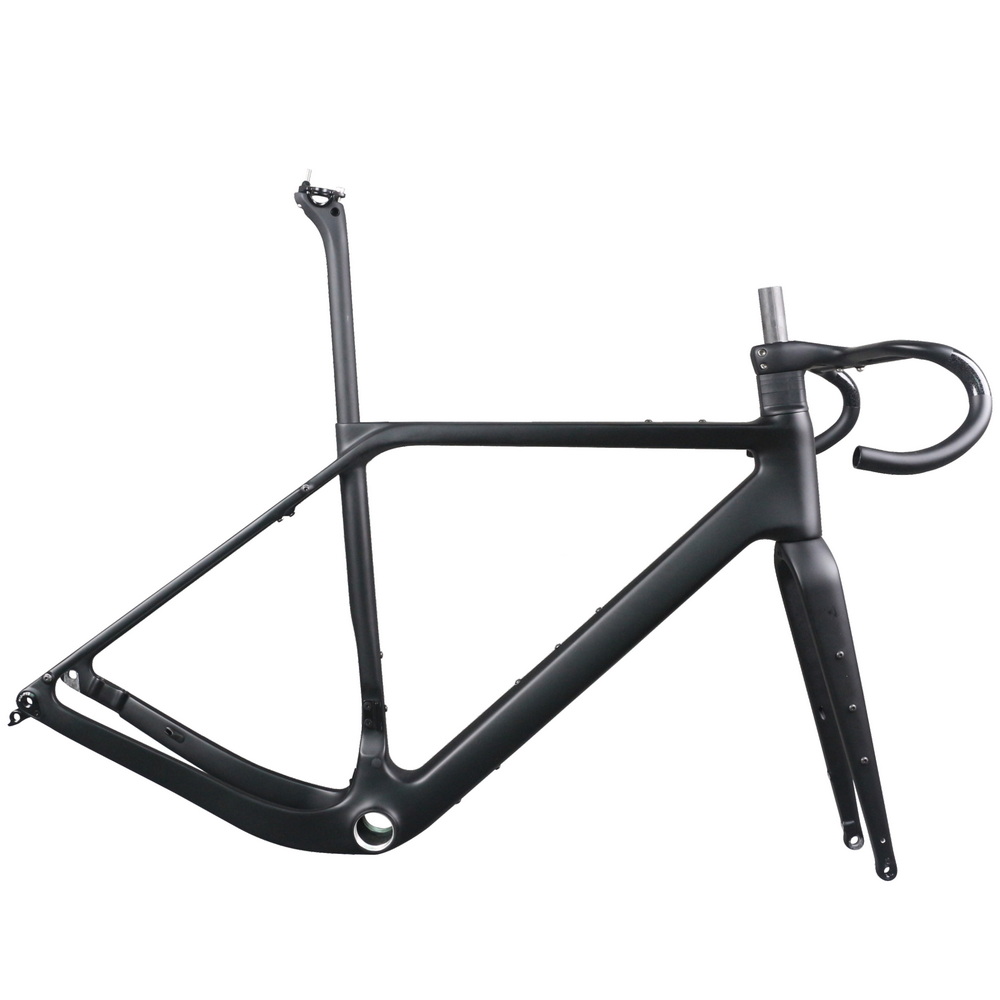

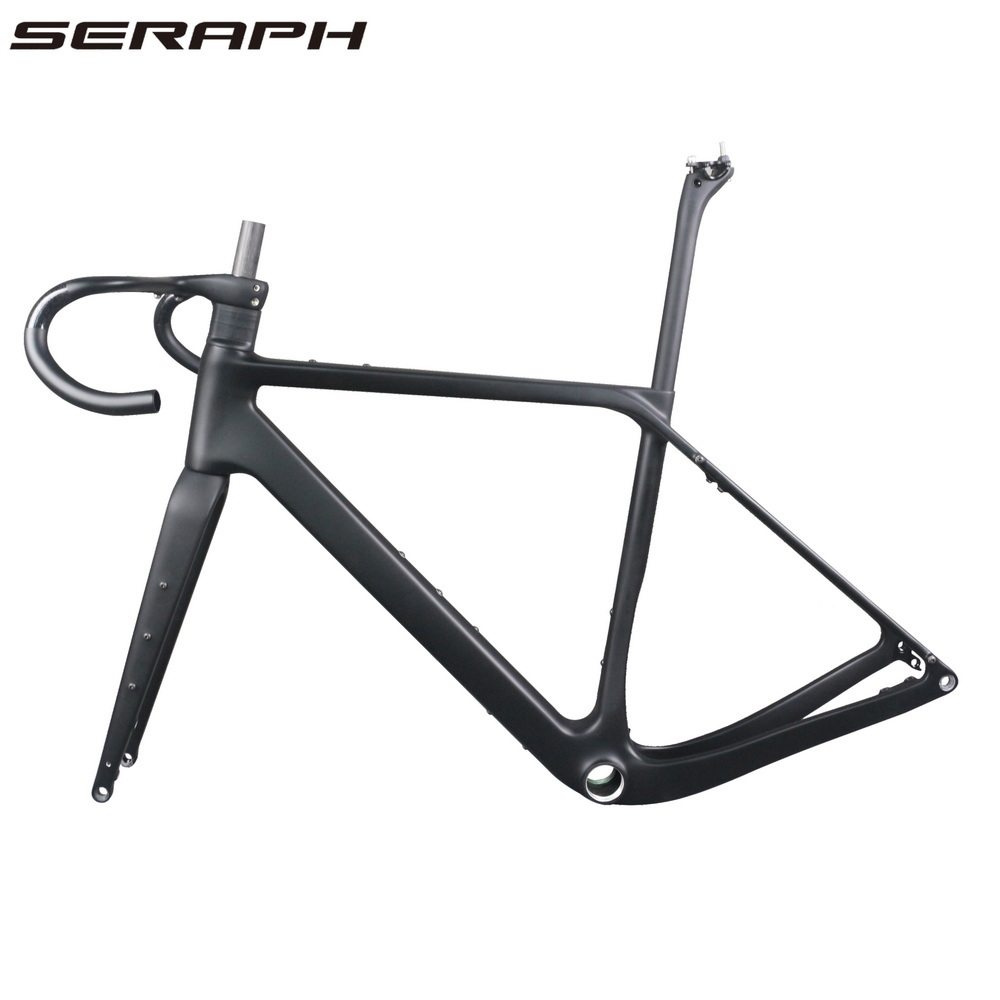

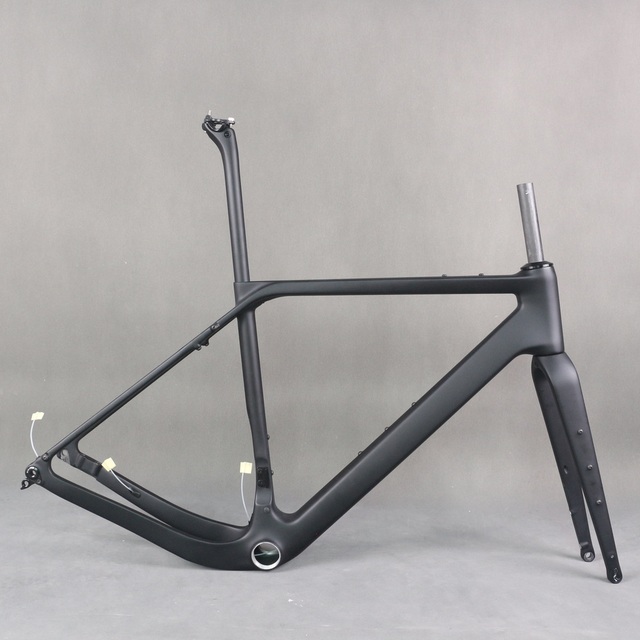

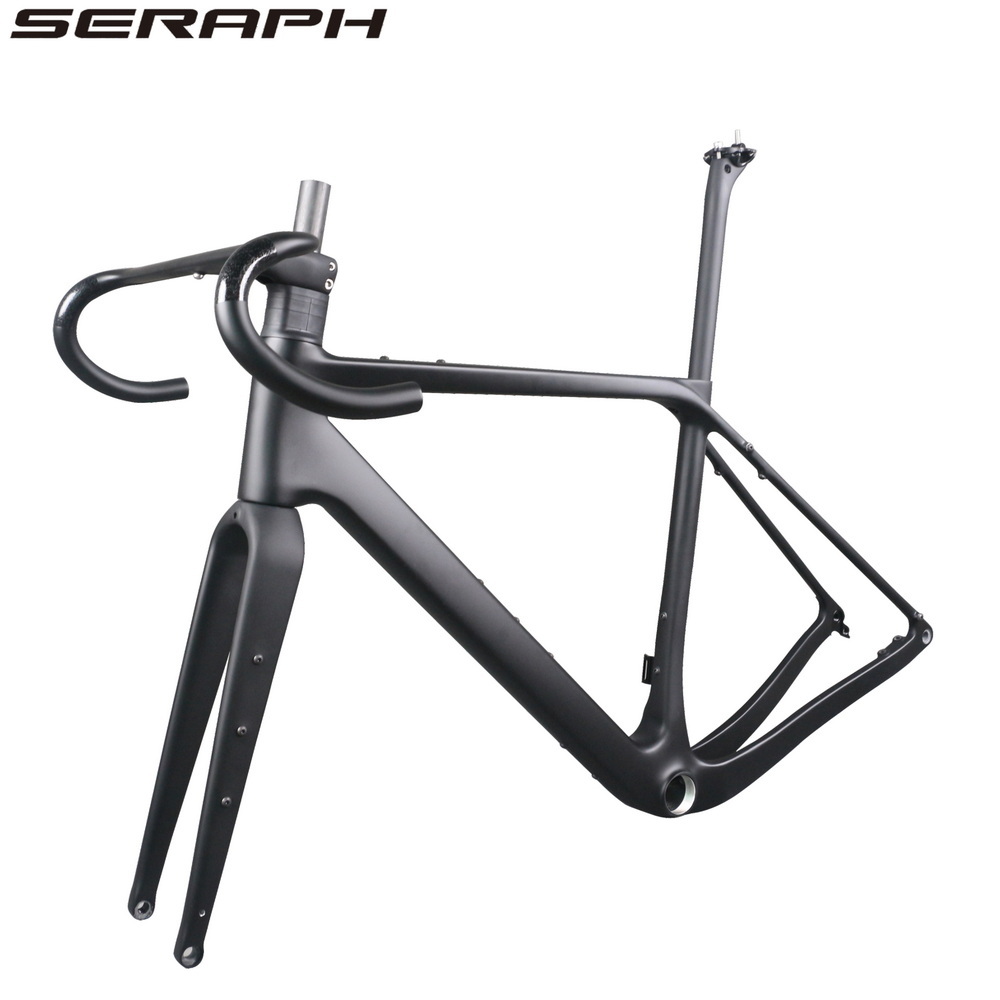

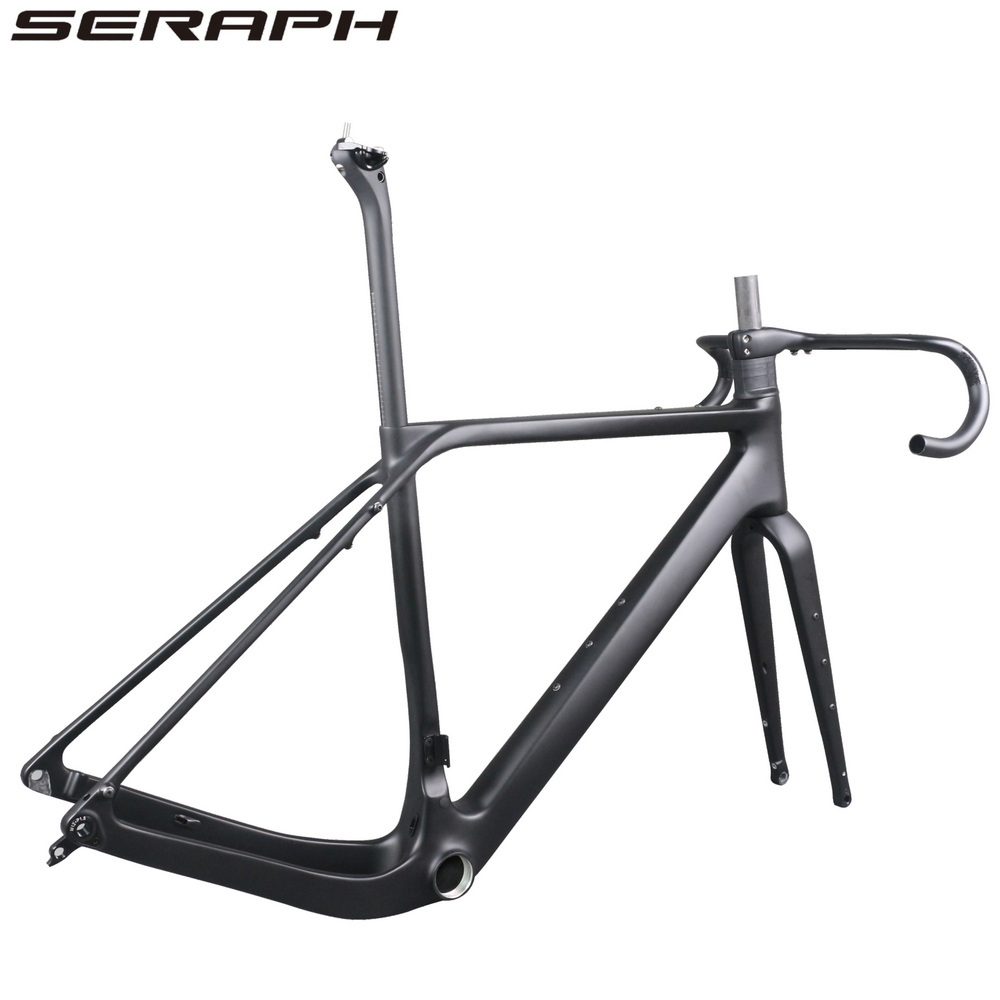

Below picture frame size is M

Package

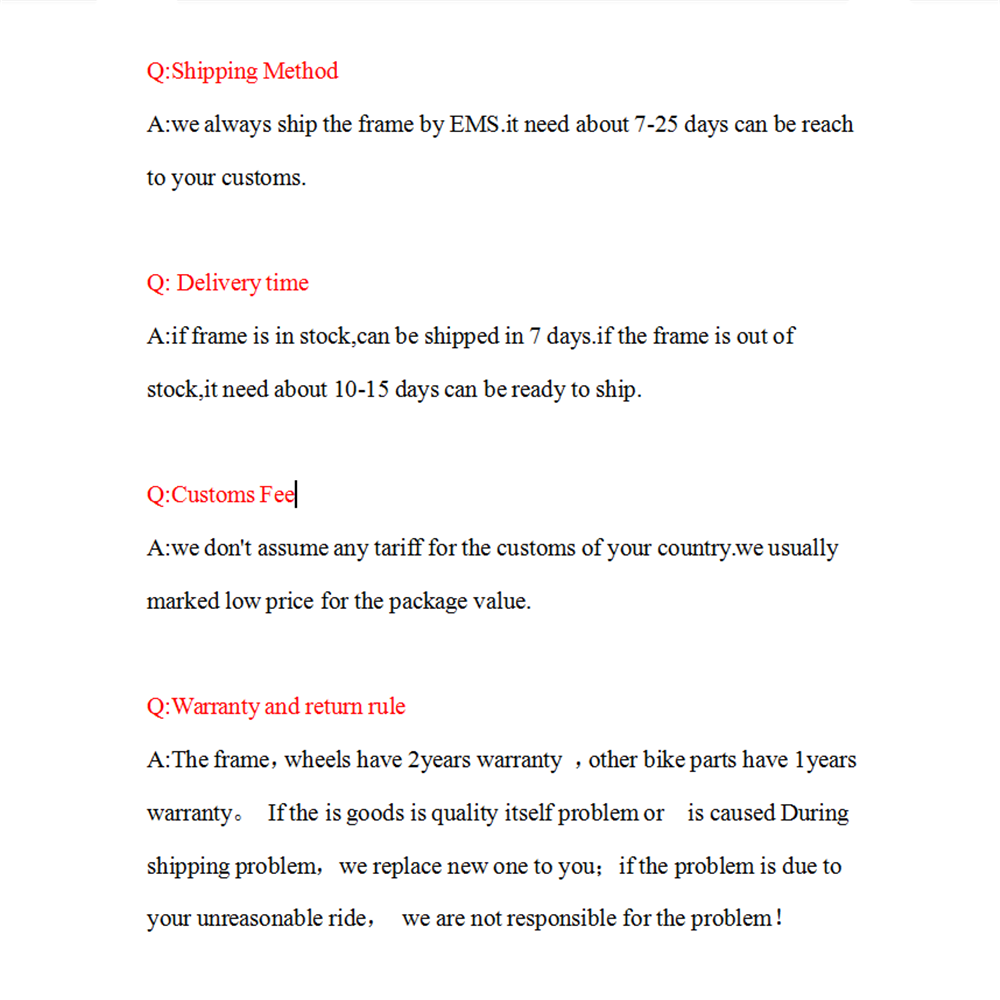

FAQ
