SERAPH
Description
roduct Description
Type:TT-X68 (disc road frame )
The Frame set:Frame+Fork+Seatpost+handlebar+stem+spacers+headset+thru axle
Material:Full Carbon T1000
Size:44/49/52/54/56/58CM
Routing:Full Internal Cables
Headset Size:Top 1-1/2 (52mm) Down 1-1/2(52mm)
Bottom Bracket:BSA 68MM
Thru Axles:Front 100*12 Rear 142*12mm
Frame Weight :836/+-40g
Fork Weight :390/+-40g
Seatpost Weight :154/+-20g
Seatpost length:44/49/52 use 300mm seatpost
54/56/58 use 380mm seatpost
Handlebar weight：356/+20g
Handlebar Size:380/400/420/440MM
Stem Size:75/90/100/110/120MM
Max Tires:700*32C
Disc Rotor:front 160mm and rear 140mm(160mm need add adapter)

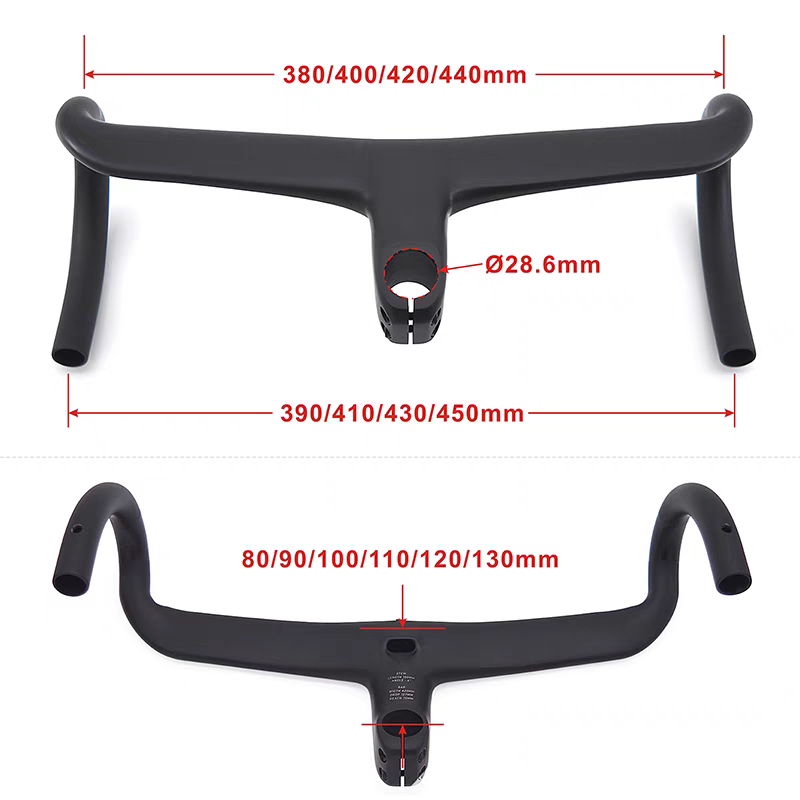

HB068 handlebar:
Handlebar Size:380/400/420/440MM
Stem Size:80/90/100/110/120/130MM
