SERAPH
Item specifics
- Hign-concerned Chemical:
- None
- Surface Processing Mode:
- Matte
- is_customized:
- Yes
- Model Number:
- TT-X70
- Use:
- cyclocross bicycles
- Weight:
- 870/-+-40g(52cm)
- Material:
- CARBON
- Brand Name:
- SERAPH
- Folded:
- No
- Origin:
- Mainland China
- BB:
- BSA 68cm
- Max Tire:
- 700X32C
- Thru-axle Groupset:
- Di2 and Mechanical Compatible
- Cable Type:
- hidden cable
Description
The frame does not include the thru axle, if you need it, please buy it together
Product information
Type: TT-X70 (disc road frame )
The Frame set: Frame+Fork+Seatpost+handlebar+stem+spacers+headset
Material: Toray T1000 Carbon Fibre
Size: 44/49/52/54/56/58cm
Routing: Full Hidden Internal Cable Routing
Headset Size: Top 1-1/2 (52mm) Down 1-1/2(52mm)
seatpost length: "44/49/52 use 300mm seatpost
54/56/58 use 380mm seatpost"
Bottom Bracket: BSA(68mm)
Thru Axles: Front 100*12 Rear 142*12mm
Frame Weight : 870/-+-40g(52cm)

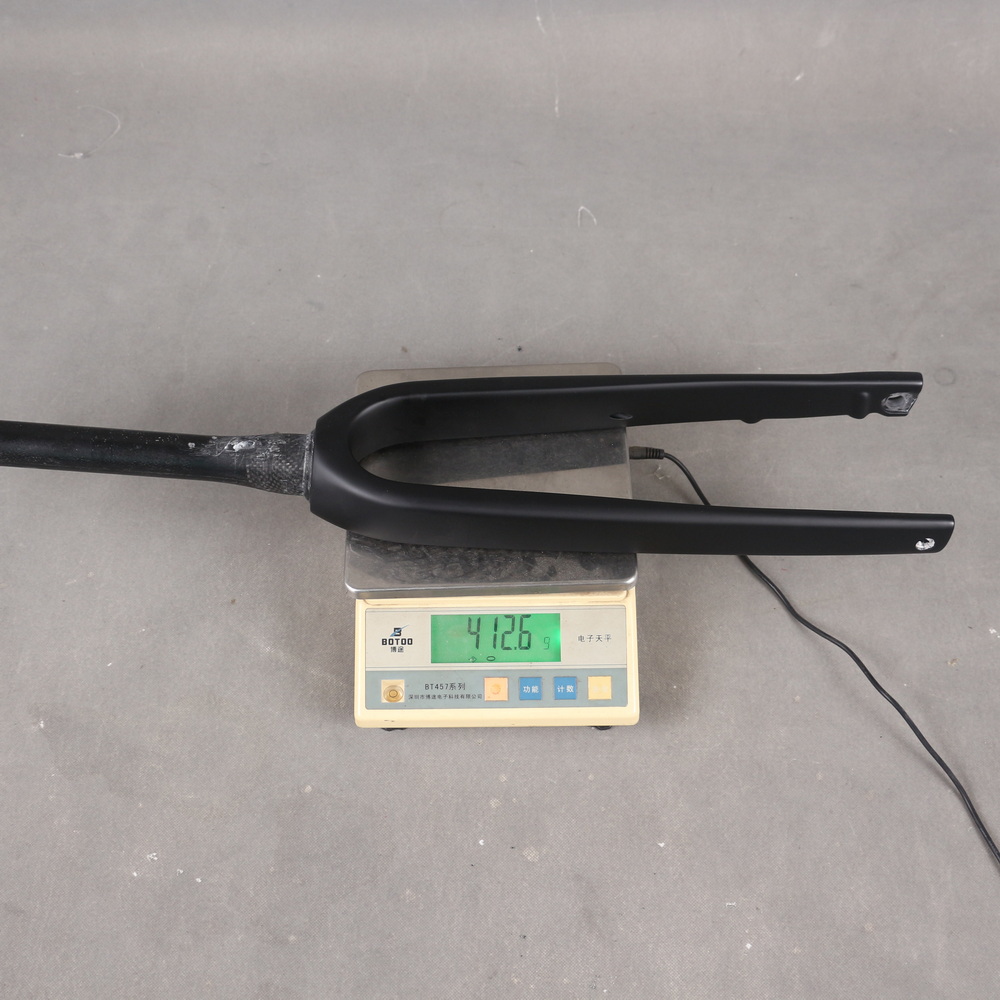

Fork Weight : 412/+-20g

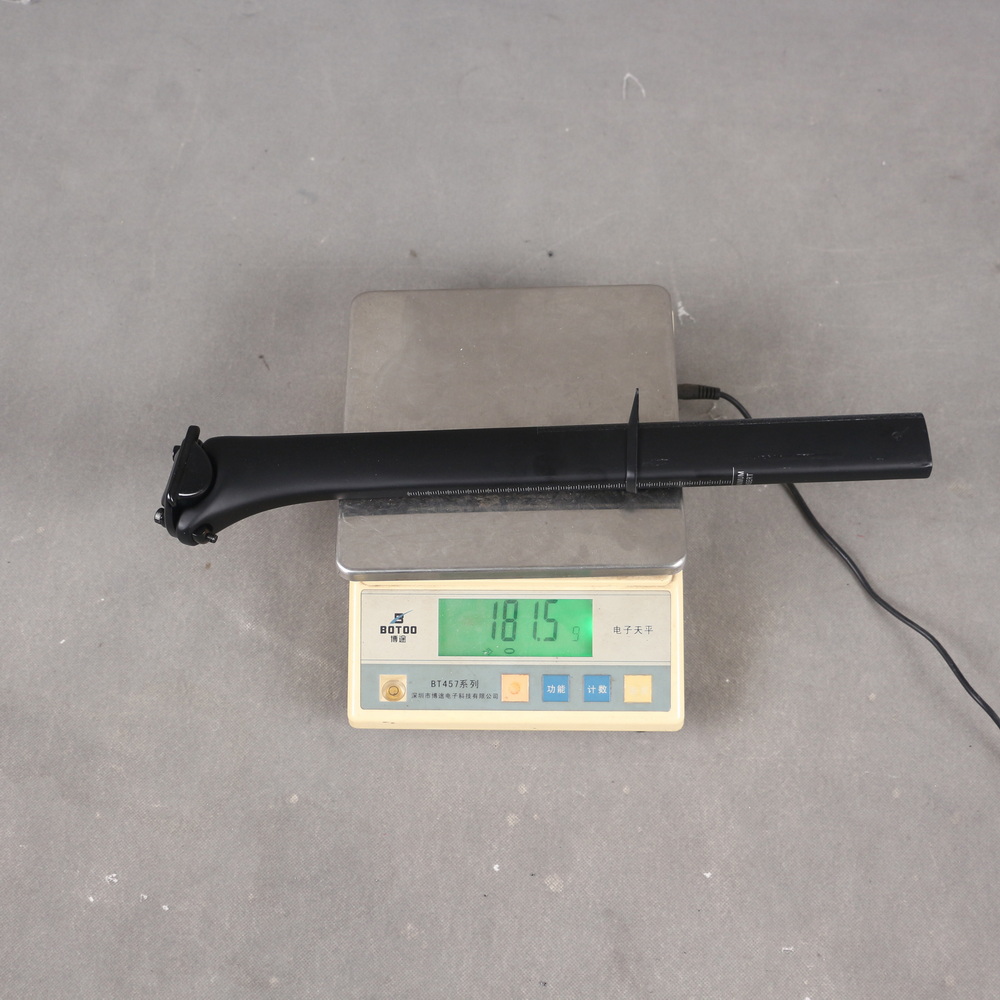

Seatpost Weight : 181/+-10g

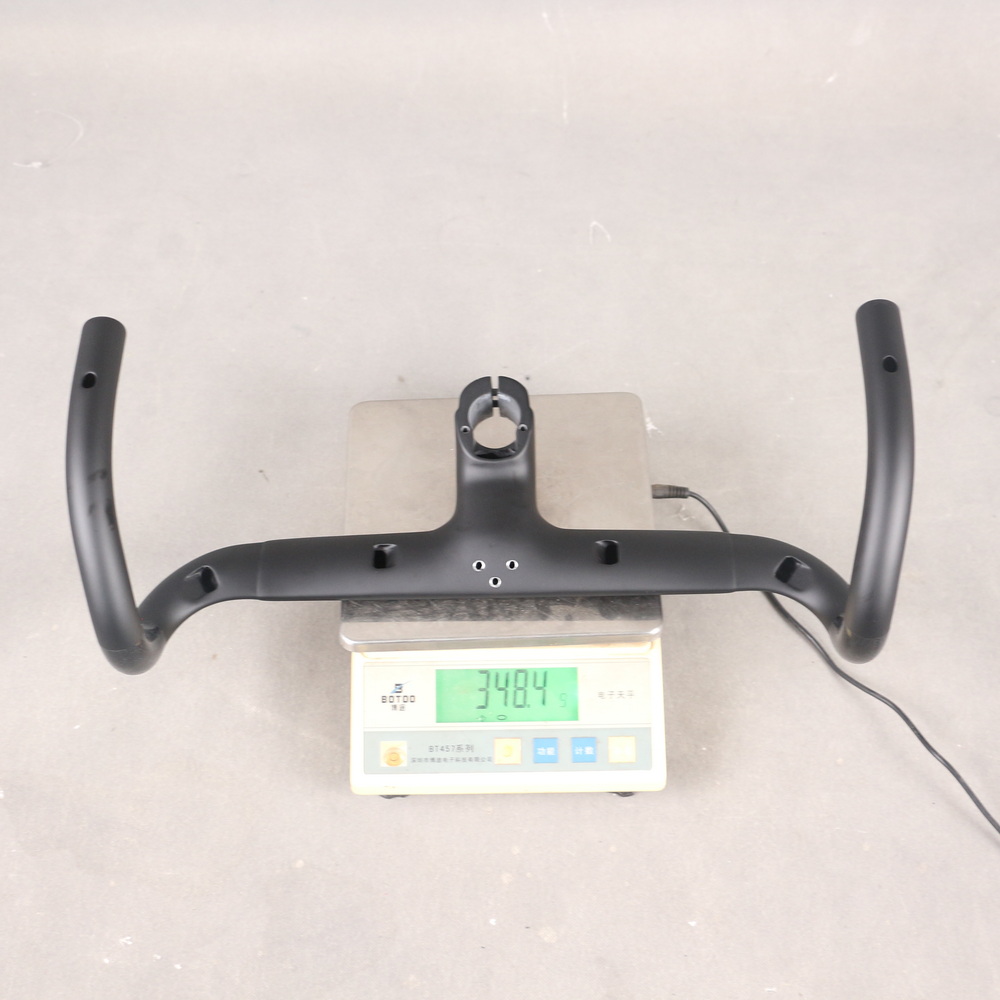

HB033 Handlebar weight： 348/+-10g
Max Tires: 700x32C
Stem Size: 80/90/100/110/120MM

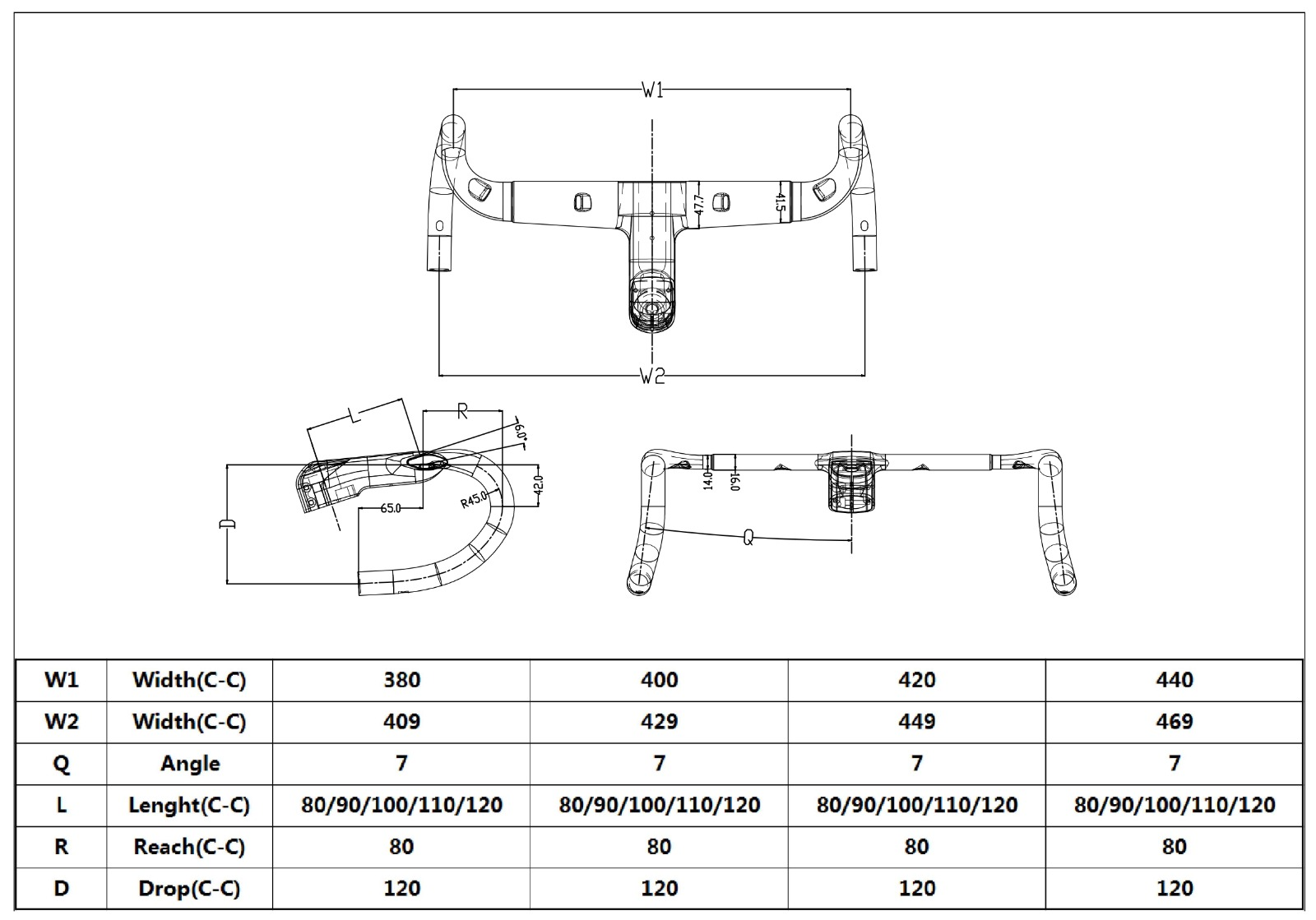

Handlebar Size: 400/420/440MM
Rear derailleur hanger: UDH
Disc Rotor: front and rear 140mm (160mm need add adapter)
Suitable Derailleur: Di2 And Mechanical Both

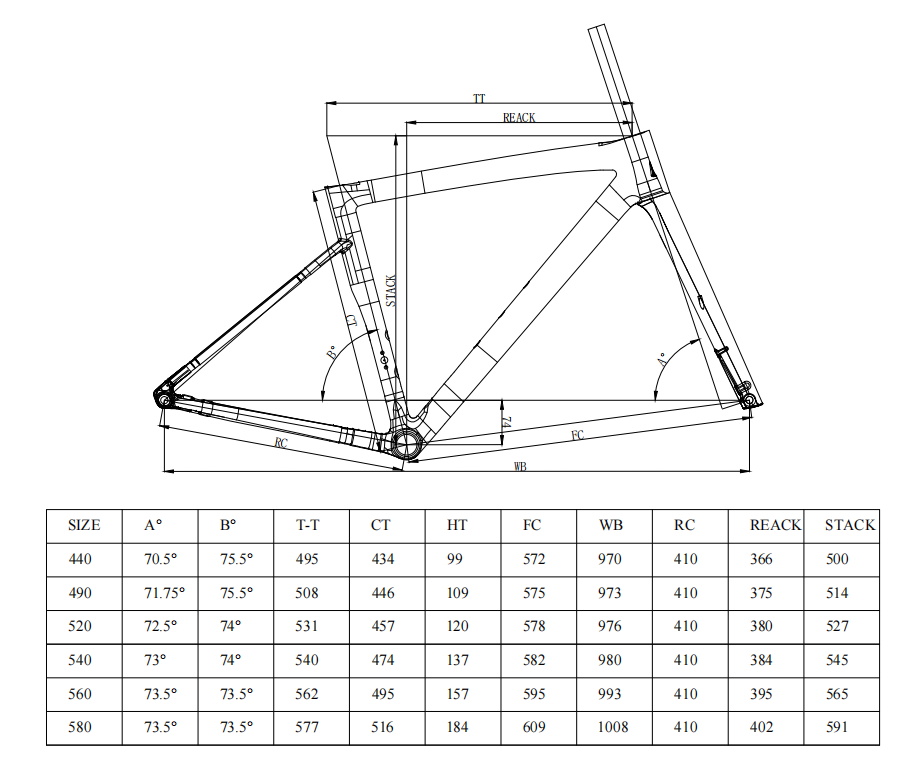

Geometry

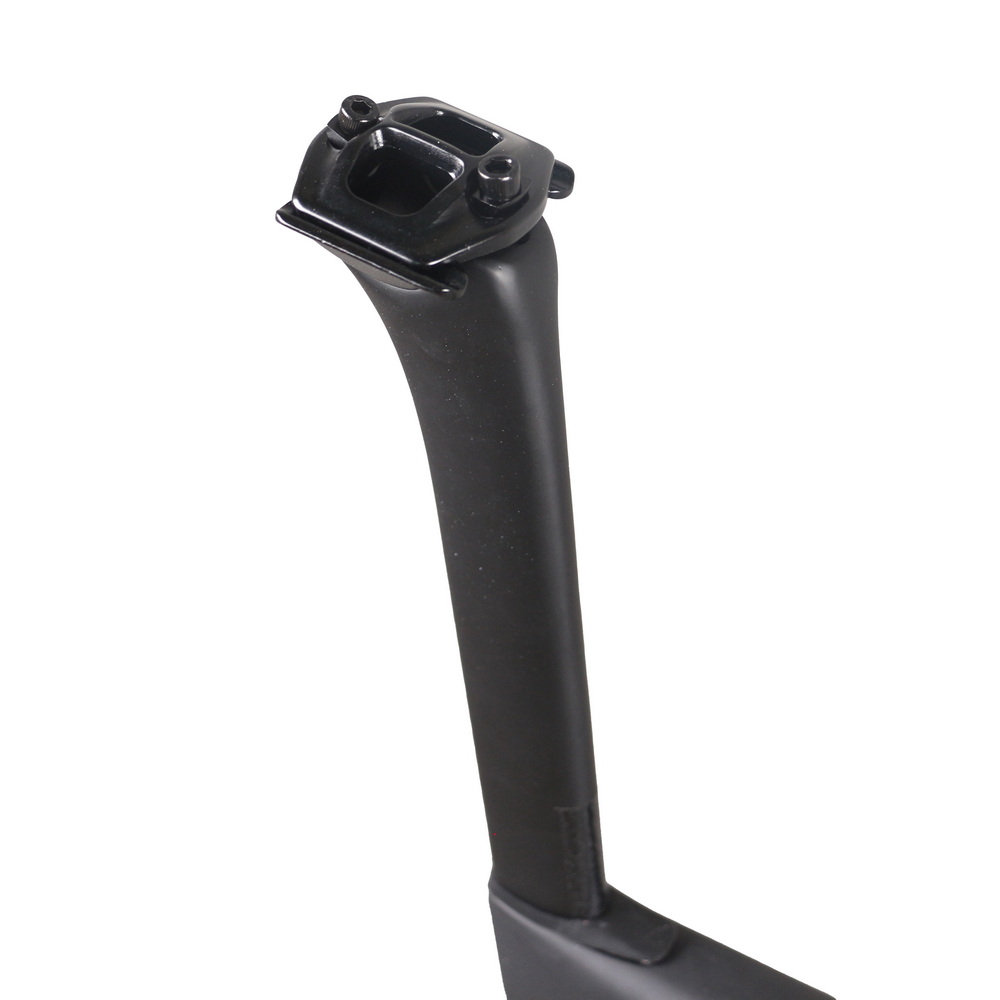

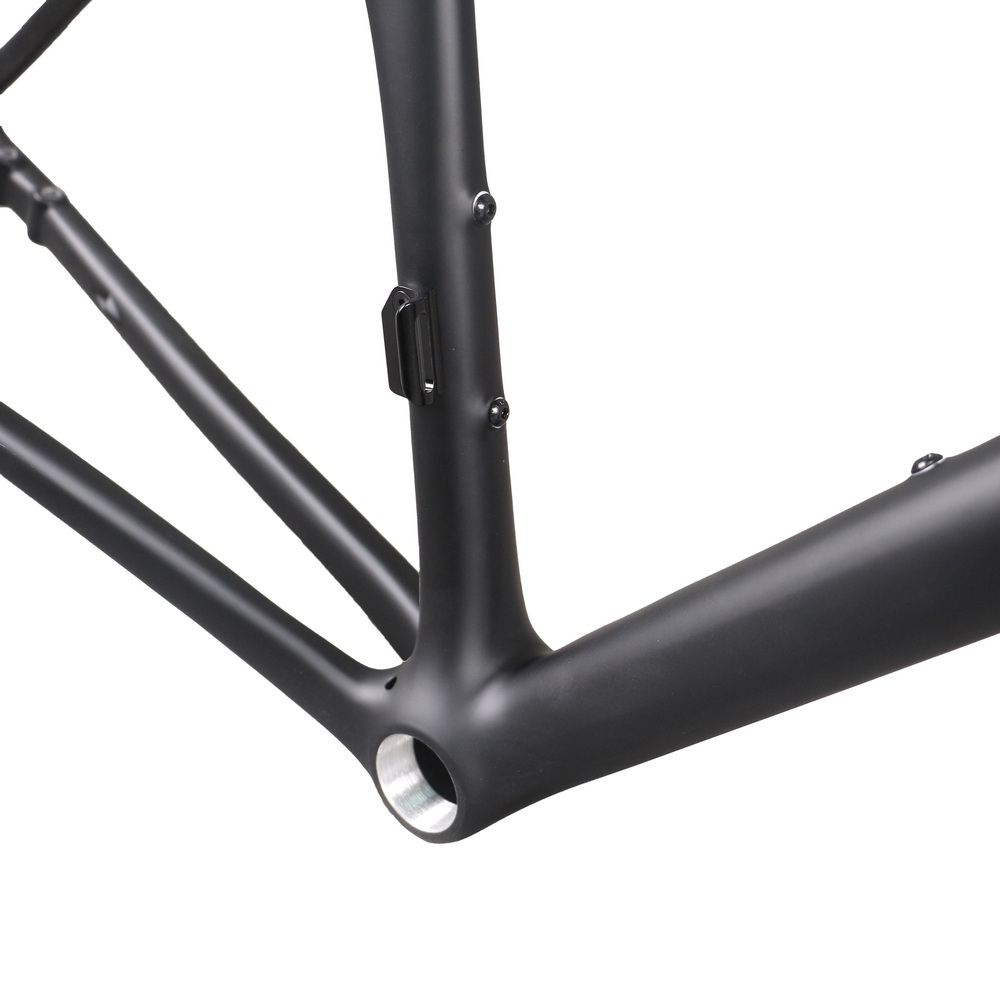

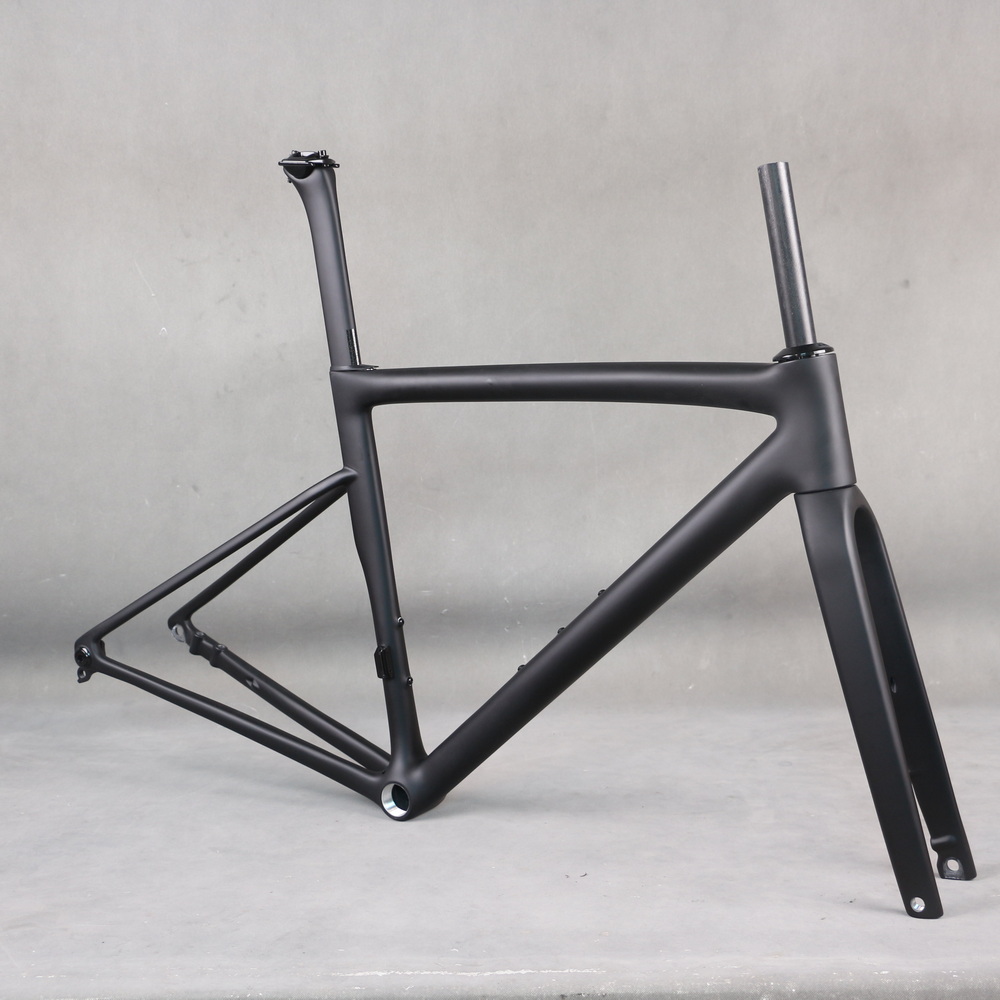

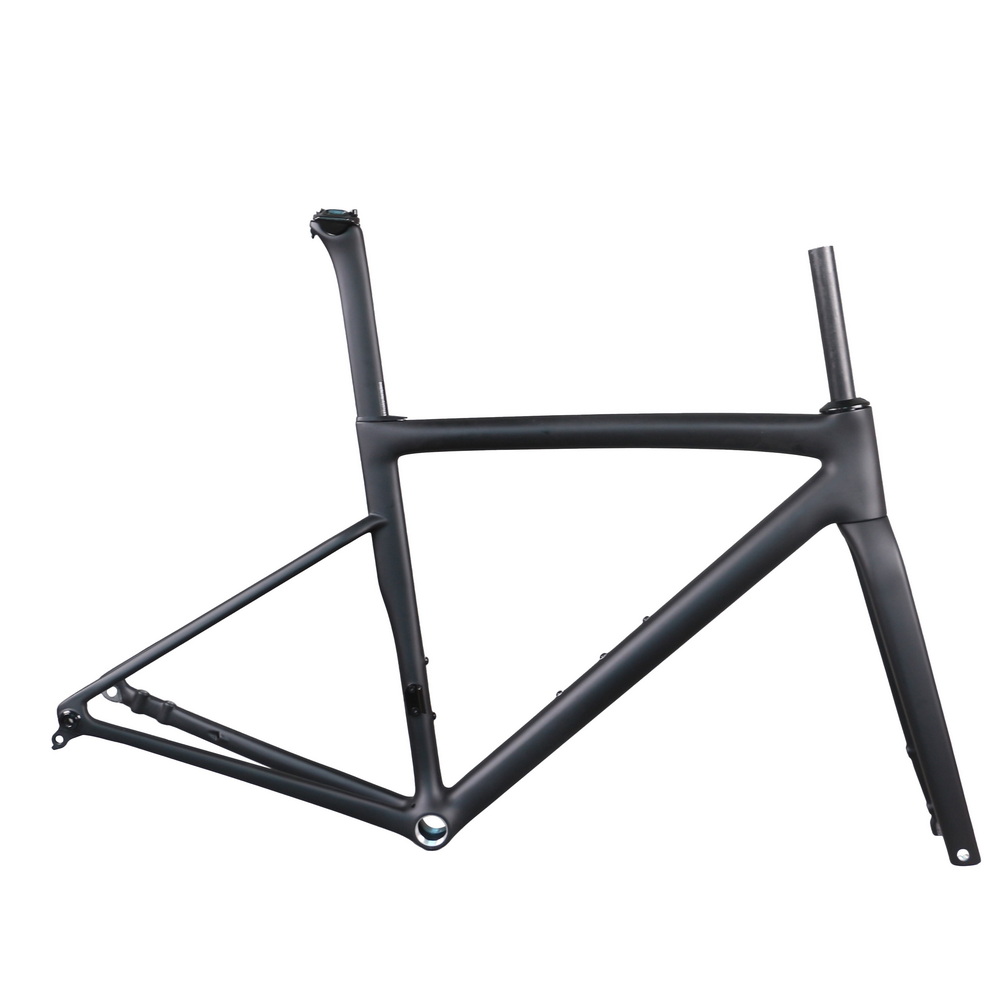

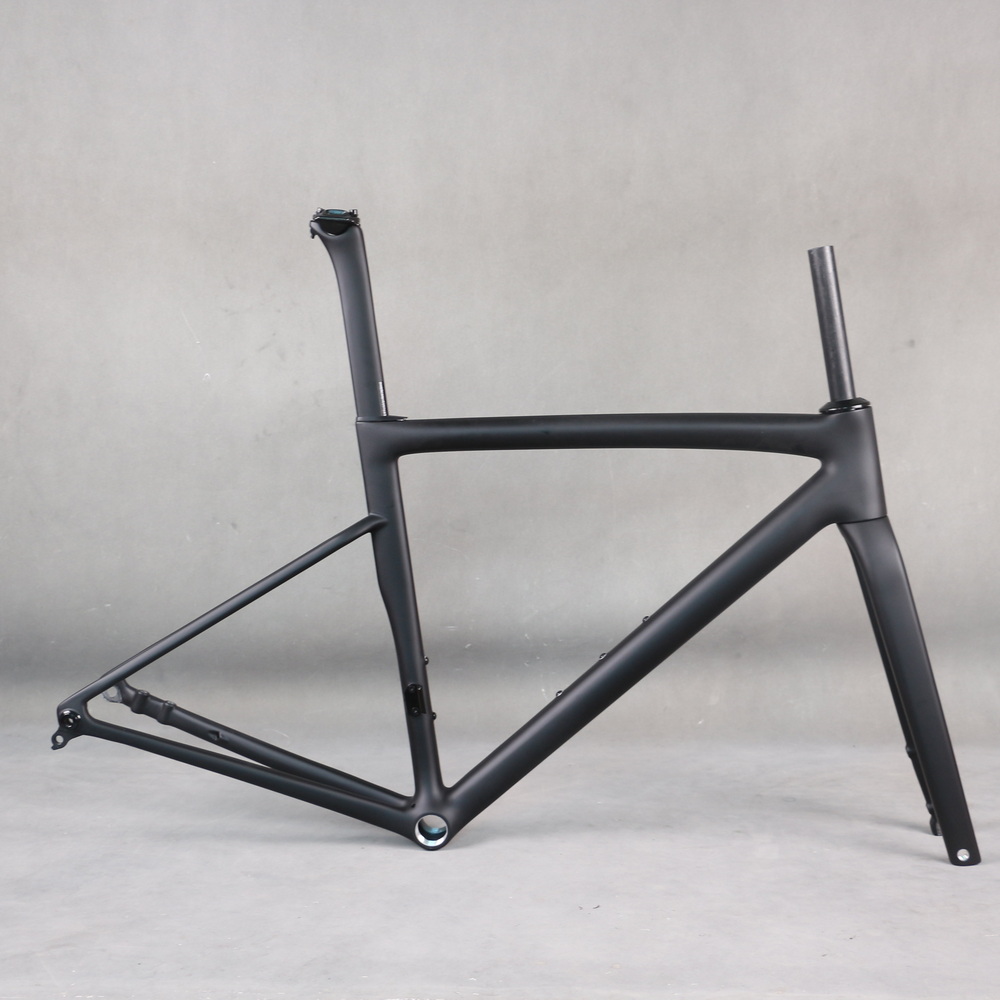

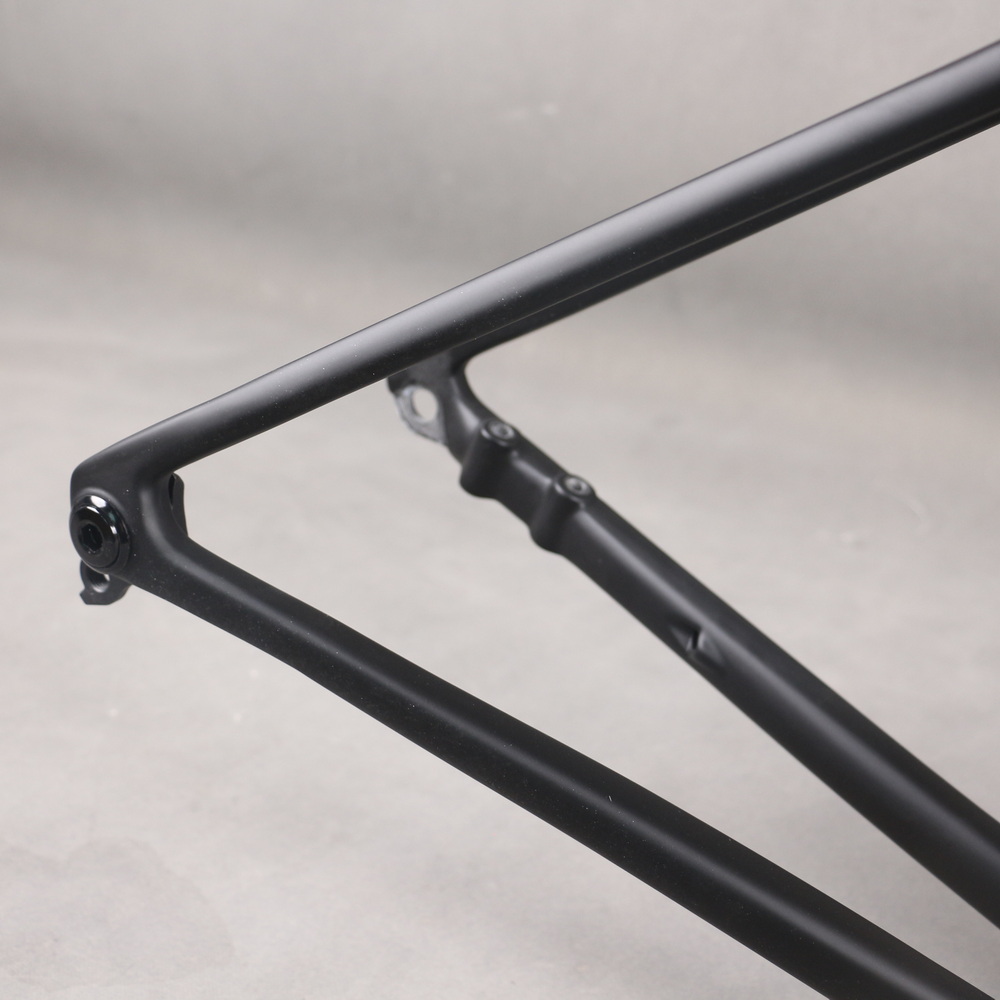

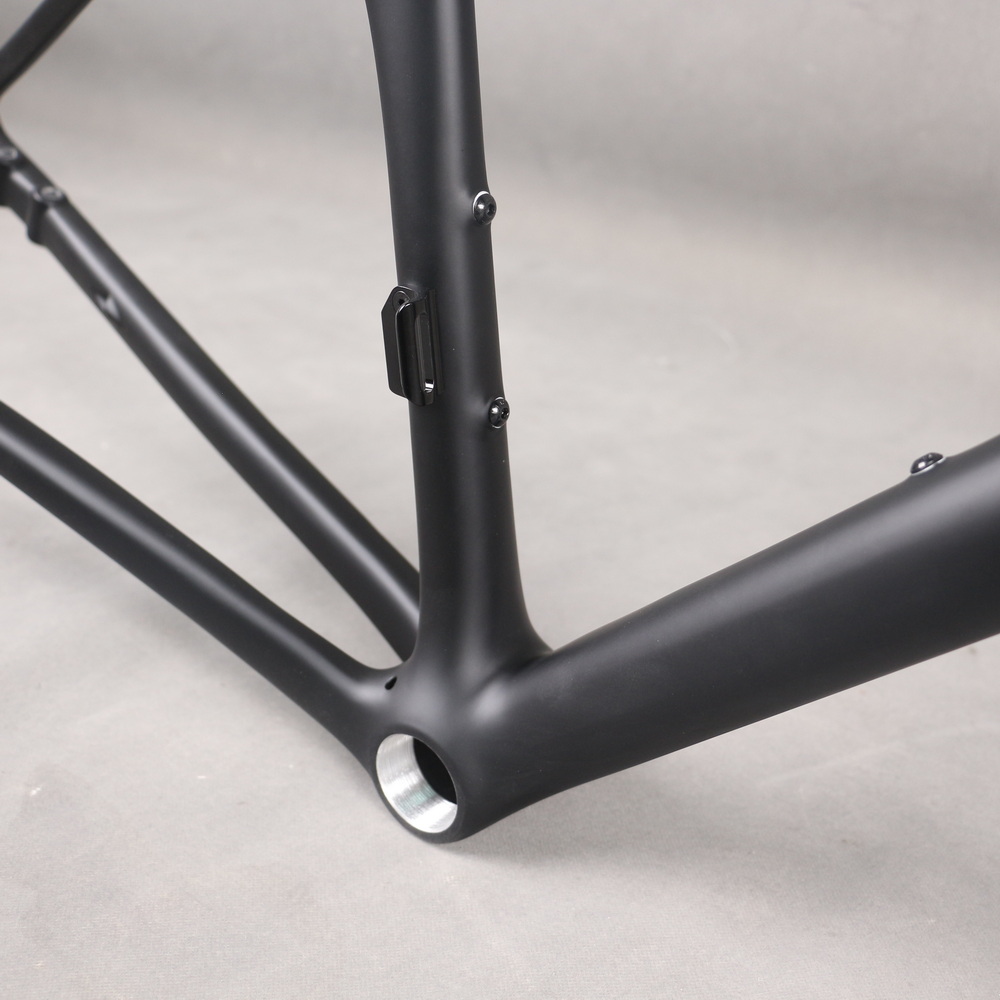

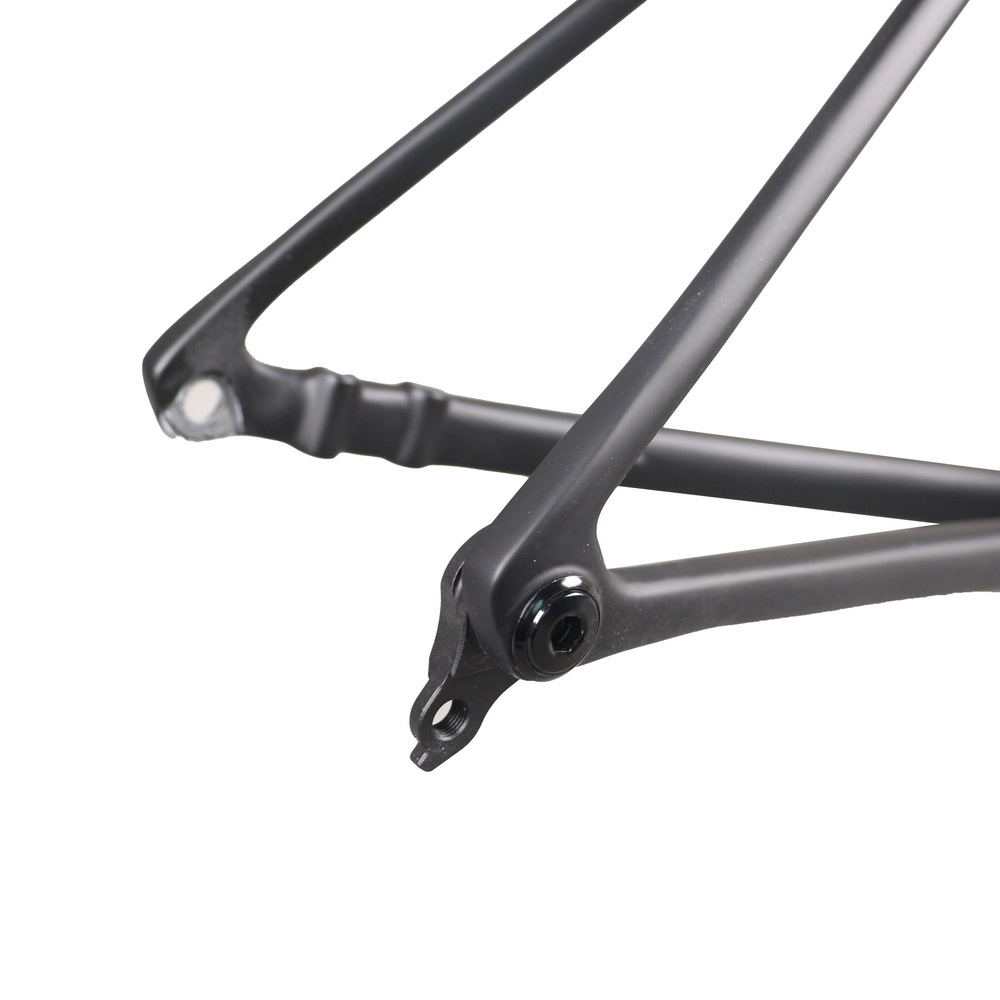

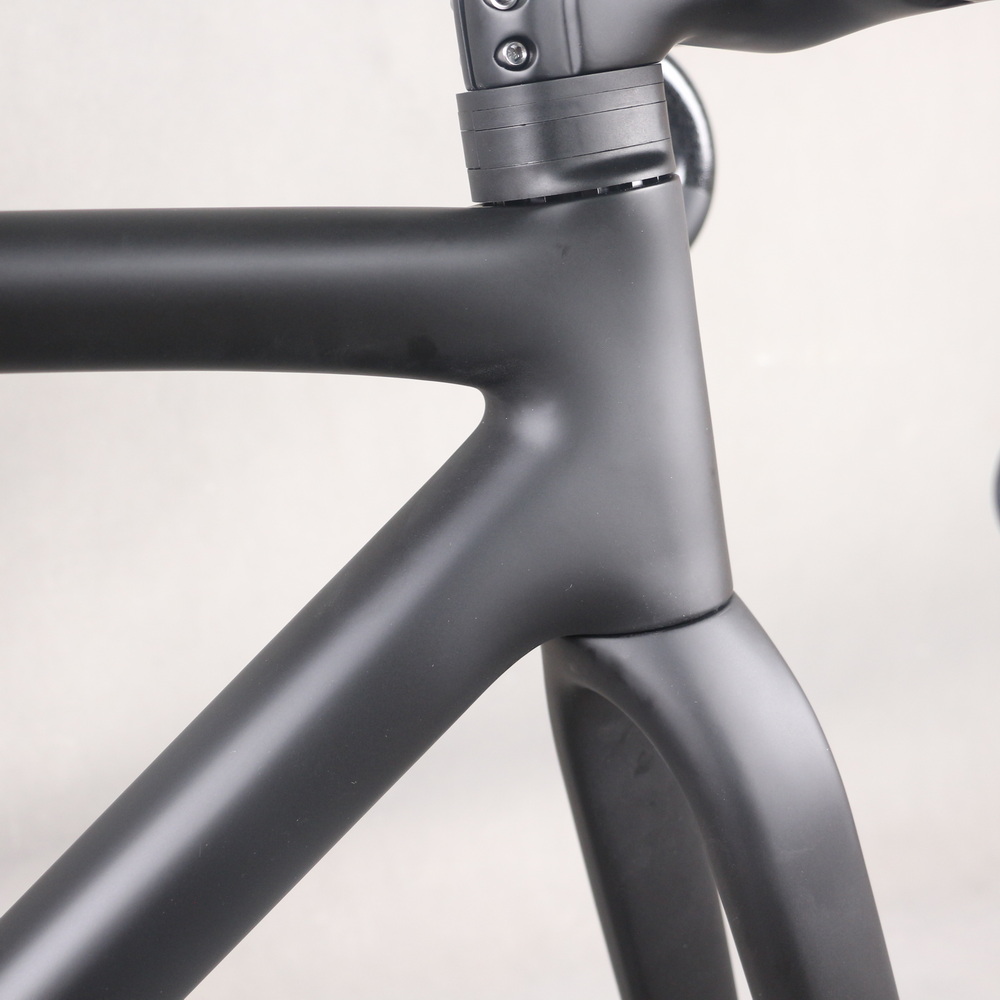

Frame without handlebar Detail images
Below picture frame size 52cm

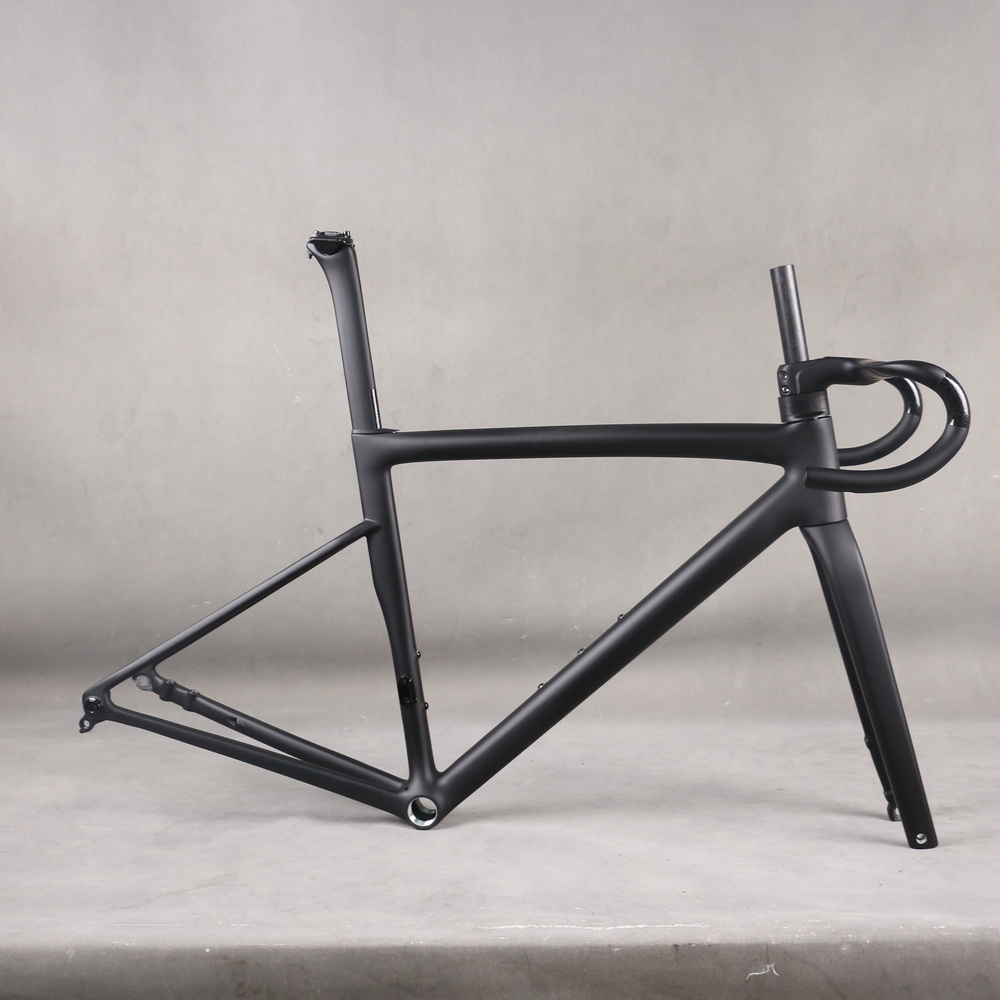

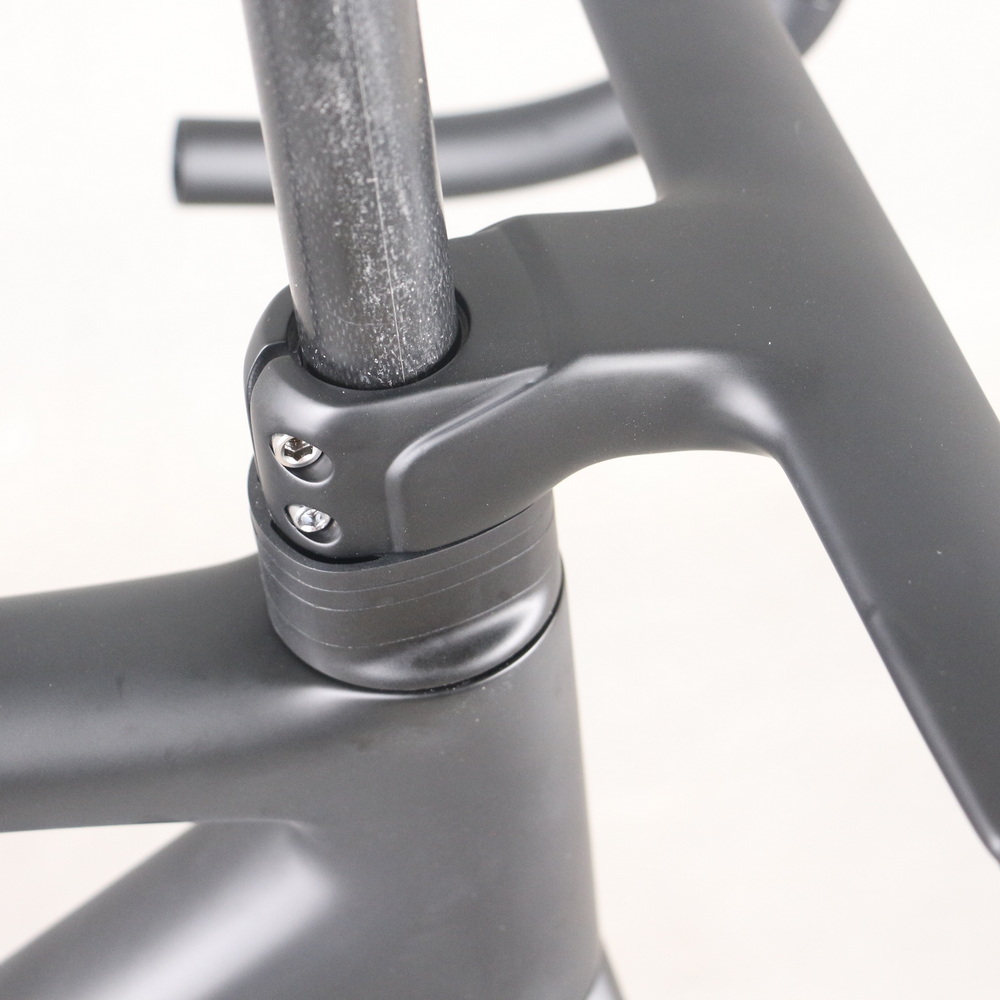

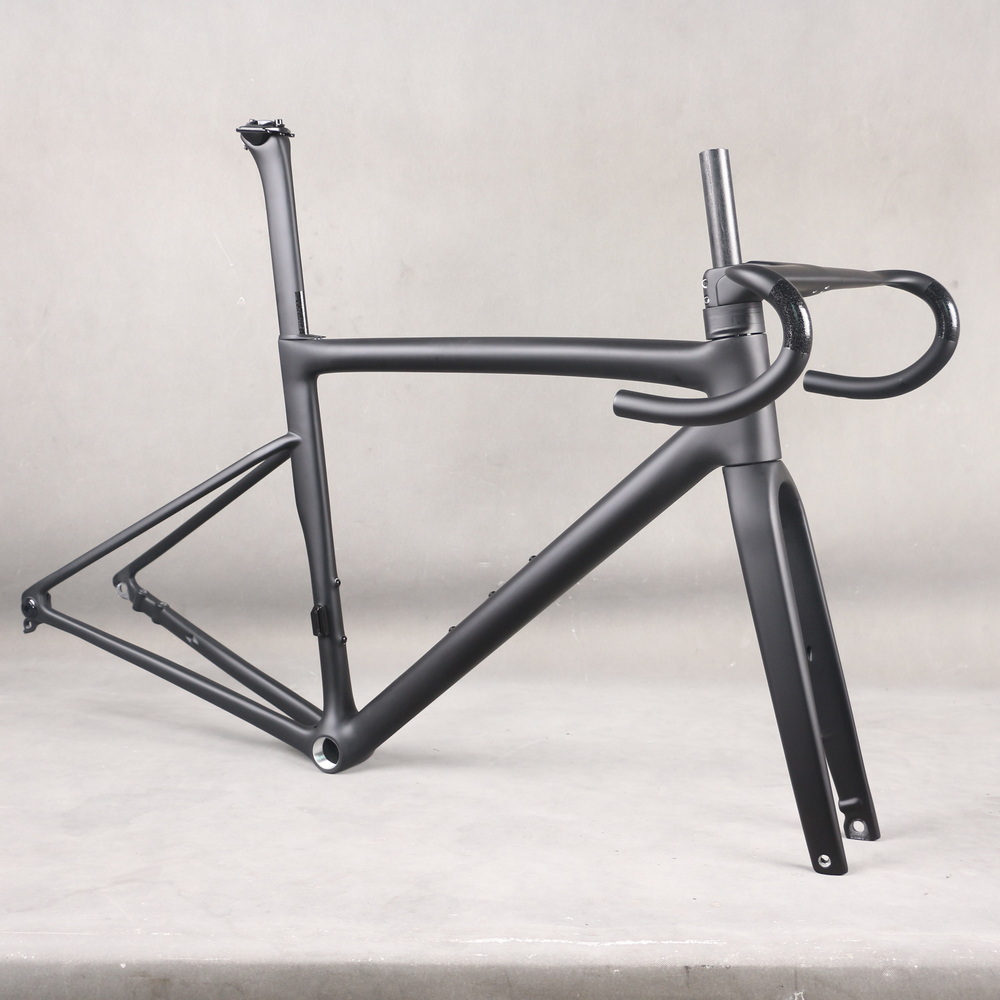

Frame with handlebar Detail images
Below picture frame size 52cm
Package

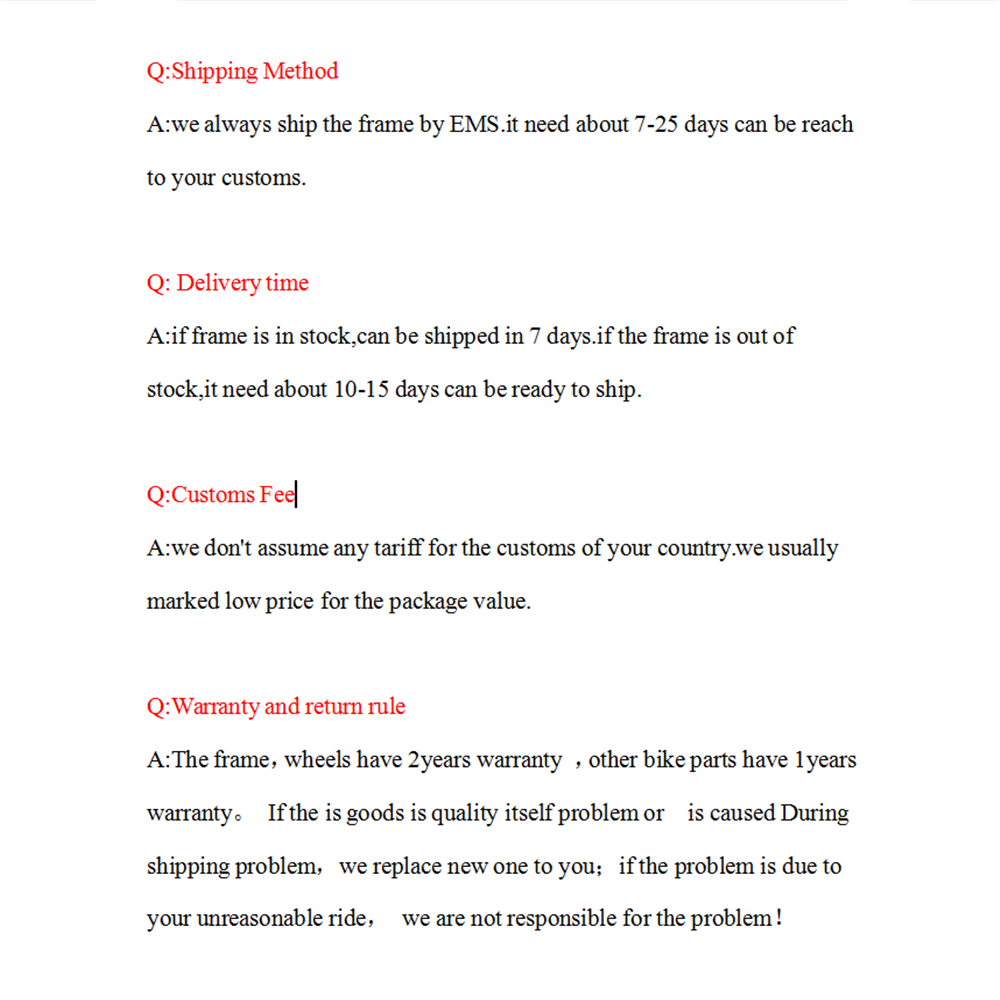

FAQ
